NW3 Series

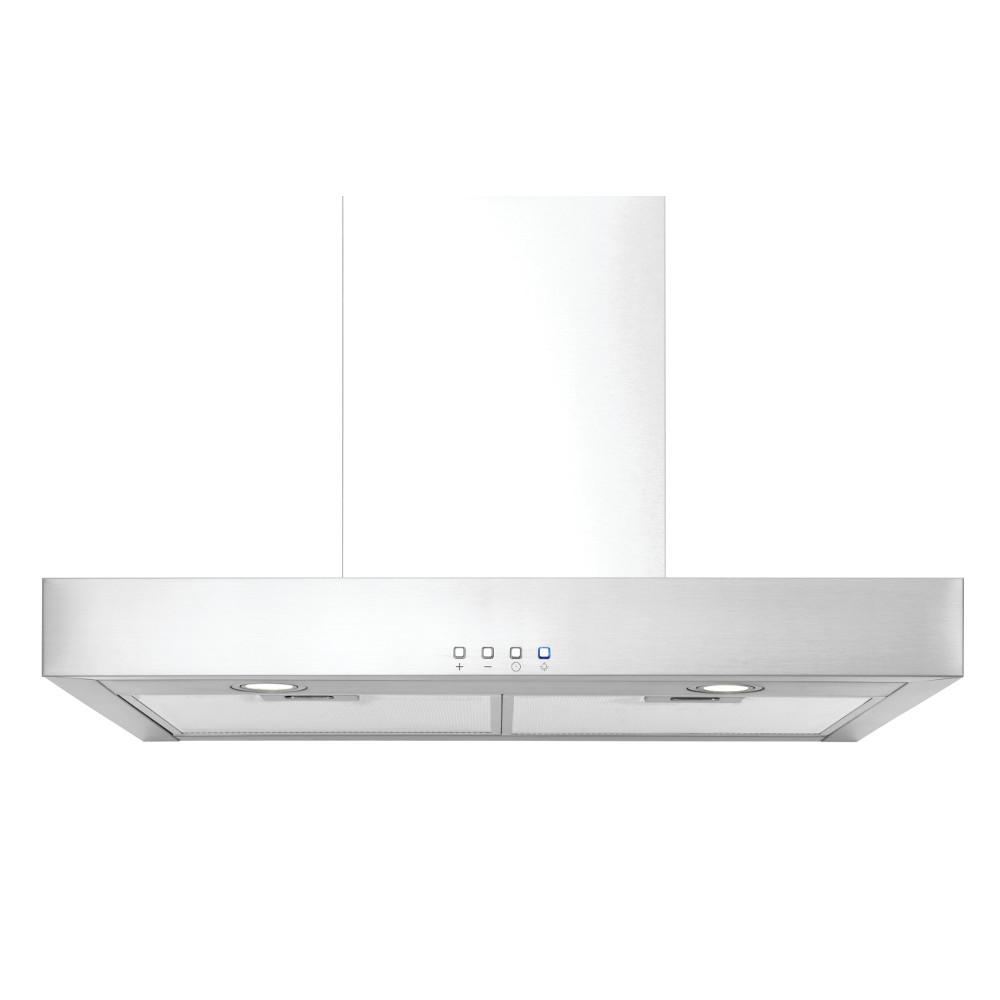

NuTone 30-In. Convertible Wall Mount T-Style Chimney Range Hood with LED Light in Stainless Steel

With clean lines, the NW3 series is inspired by a more contemporary style. This series offers excellent value for money in terms of performance, features, and up-to-date design. Bright LED lighting illuminates the cooktop and a powerful 450 CFM blower effectively pulls smoke and odor from the air. Recirculation capable with use of Non-duct Kit (Model RK56, sold separately) to suit your needs.


Color Finish


Product Width


Model:

NW330SS

Features

  • Powerful 450 CFM, HVI Certified, provides good capture over your cooktop.
  • Two speed control provide quiet (2.5 sones) normal speed operation
  • 19.5” deep design provides 30% more coverage than standard OTR.
  • 2-Way vent convertibility allows unit to be installed as ducted or non-ducted.
  • Integrated LED modules are specially designed for cooking environments.
  • Up-front controls: Provide convenient access and operation of hood.

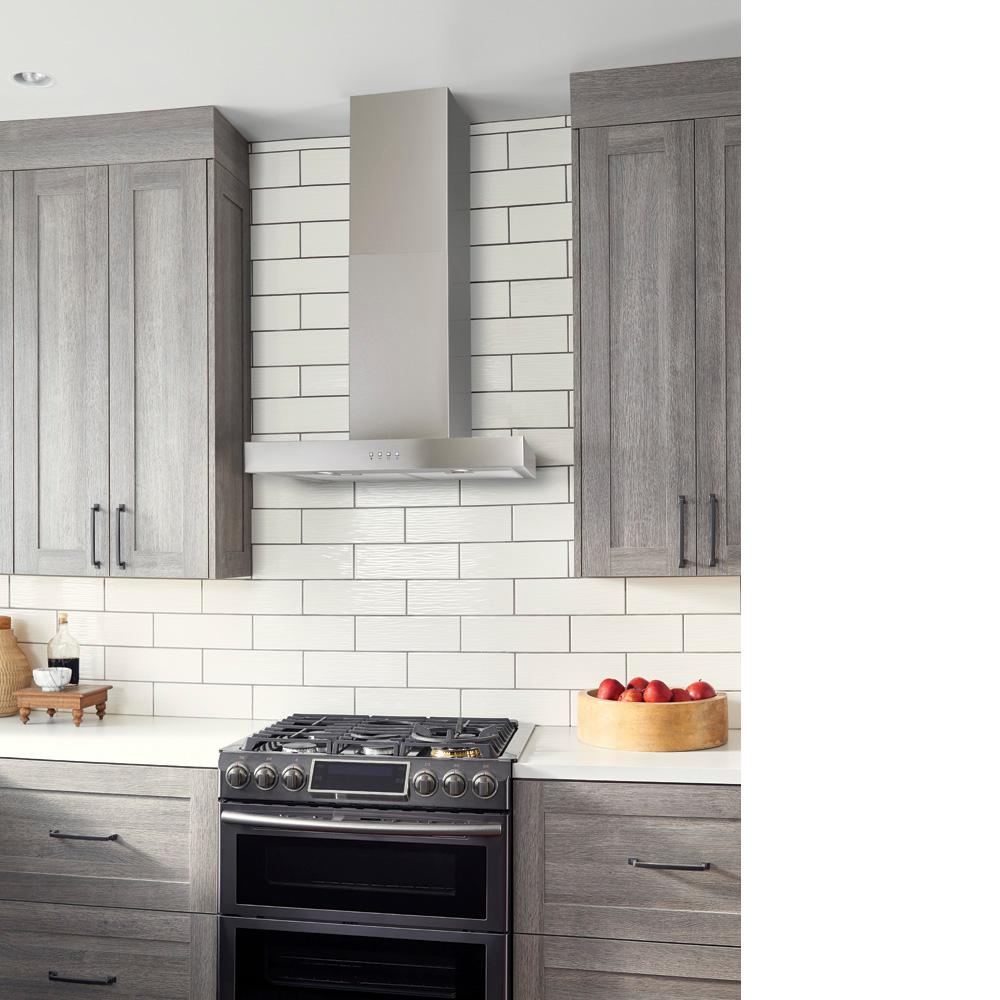

  • Install hood so that the bottom of the unit is 26 to 30 inches above the cooking surface. Mounting height is affected by ceiling height
  • Specs
  • Downloads

print

Filter Type Aluminum Mesh
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
Sones 2.5
UL Listed Yes
ADA Compliance No
Damper Included Yes
ENERGY STAR® Qualified No
Light Bulb Wattage 3
Light Bulbs Included Yes
Light Levels
Material Steel
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable Yes
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels
Switch Control Type Push Button
Rated Voltage 120
Boost Mode No
Country of Origin China
Accommodates Ceiling Height
Color Finish
Minimum Height Above Cook Top
Rated Amps 3.3
Product Depth 19.75
Height 18.875
Product Width 30
Built-In Timer No
Capture Efficiency
CFM 450
Diameter 6" Round
Vent Type Ducted & Non-Ducted
Duct Direction Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp
Manufacturer Warranty 1 Year
Wattage 396
