Broan® Elite EW56 Series Chimney Range Hood

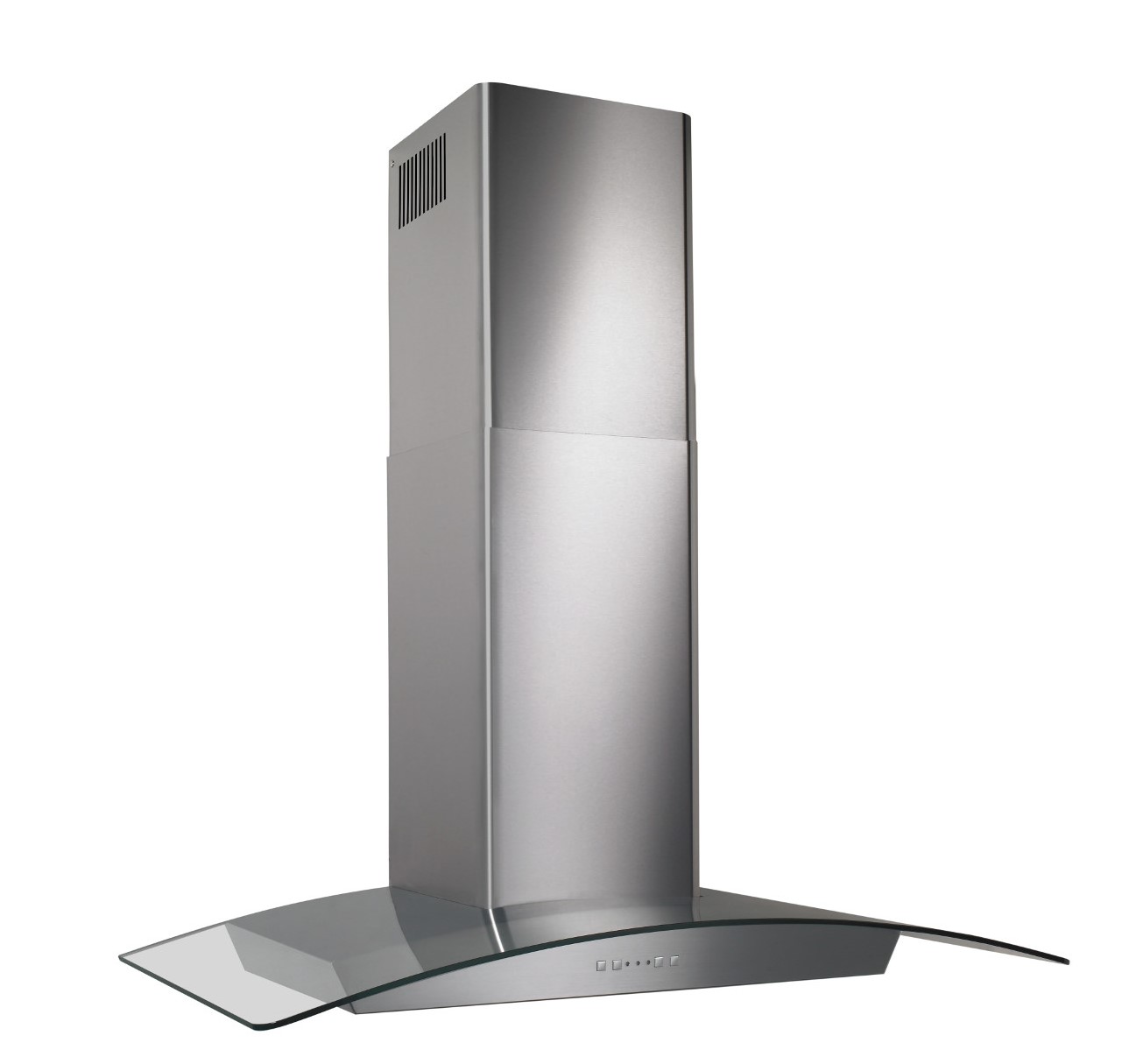

Broan® 36-Inch Curved Glass Canopy Wall-Mount Range Hood w/ Heat Sentry™, 500 CFM, Stainless Steel

Elegant European curved glass design that is both beautiful and functional. The airy design is a stunning focal point that complements its surrounding perfectly.

Color Finish

Product Width




  • Powerful 500 CFM internal blower removes smoke and odor from the kitchen
  • Bright dual halogen lighting (bulbs included); 3 intensities
  • Control features Delay-off and Filter clean reminder
  • Optional remote control operation – BCR1 (sold separately)
  • Quick-release aluminum filters are dishwasher-safe for easy cleaning
  • Designed to work with Broan Automatic Make-up Air Dampers
  • Heat Sentry® detects excessive heat and adjusts blower to High speed automatically
  • Telescopic flue accommodates ceiling heights 8' to 9'; optional flue extension for either ducted or non-ducted 9' to 10' ceilings can be purchased separately
  • Specs
  • Downloads


Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type Halogen
Sones 10.5
UL Listed Yes
ADA Compliance No
Damper Included Yes
ENERGY STAR® certified No
Light Bulb Wattage 35
Light Bulbs Included Yes
Light Levels 3
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable Yes
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Push Button
Rated Voltage 120
Boost Mode No
Country of Origin
Accommodates Ceiling Height
Color Finish
Minimum Height Above Cook Top
Rated Amps 2.88
Product Depth 19.75
Height 22.5
Product Width 36"
Built-In Timer No
Capture Efficiency
CFM 500
Diameter 6" Round
Vent Type Convertible with Kit
Duct Direction Vertical
Bulb (Recommended Type) MR16 GU10
Light Color Temp
Manufacturer Warranty 1 Year
Wattage 346
