Product Discontinued
Broan® Elite Pro Outdoor Hood EPD61 Series
Broan® EPD61 Series 60-inch Pro-Style Outdoor Range Hood, 1290 Max Blower CFM, Stainless Steel
Model:
EPD6160SS
Features

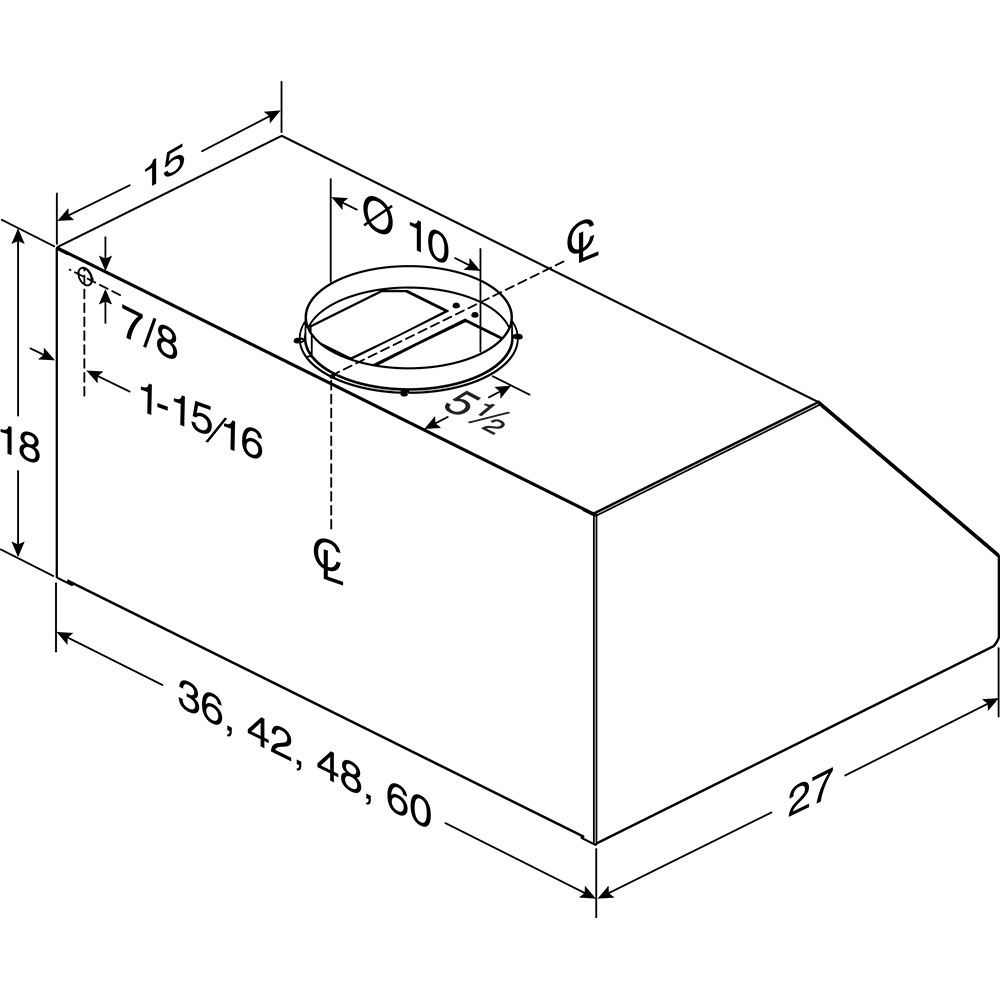

- 18" tall wall-mount design with deep 27" depth to handle the heat and size of outdoor grills
- Powerful 1290 Max Blower CFM for quiet, dependable operation
- 3-speed rotary control for convenient range of ventilation choices
- 50-watt Halogen bulbs provide bright lighting: two in 36” and 42”, three in 48” and 60” (not included)
- Professional style baffle filters capture grease typical to outdoor cooking; easy to remove grease rail makes clean up easier
- Heat Sentry® detects excessive heat and adjusts blower speed to High automatically to maintain optimum ventilation
- HVI certification gives you confidence this hood meets rated specs
- Optional 3" wall extension for greater coverage; eliminates expensive custom wall bump-outs
- Optional flue covers available to fit 8', 9' and 10' ceilings for standard or wall extension installation choices
- Specs
- Downloads
| Filter Type | Stainless Steel Baffle |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 11 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 50 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Switch Control Type | Rotary |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish |
|
| Rated Amps | 9 |
| Product Height | 18 |
| Product Width | 60" |
| Built-In Timer | No |
| CFM | 1290 Max |
| Diameter | 10" Round |
| Vent Type | Ducted Only |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Halogen 50W, GU10 |
| Manufacturer Warranty | 1 Year |
| Wattage | 1080 |
