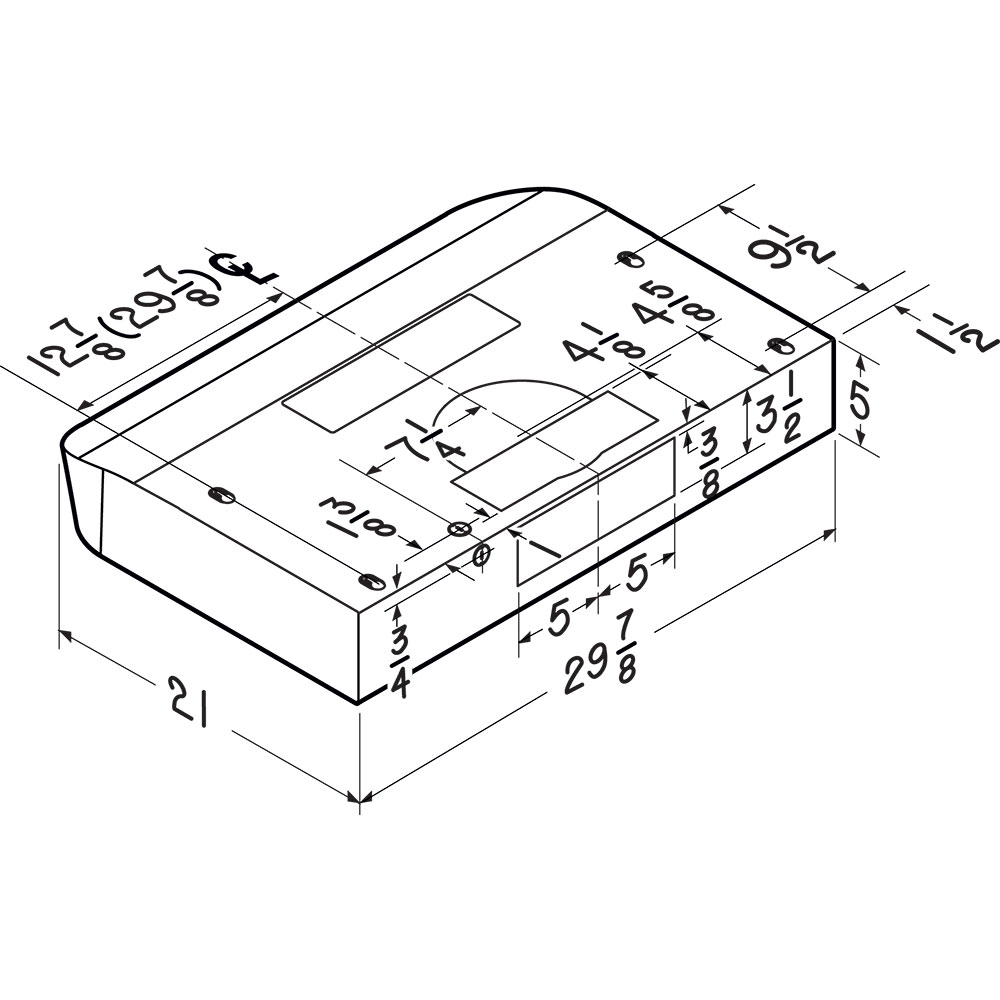

![](https://www.broan-nutone.com/getmedia/65f4ad20-556c-4d12-b428-fa455bce5e6f/CLSC1_dim_6.jpg?width=1000&height=1000&ext=.jpg)
Product Discontinued
Broan® Antero CLSC1 Series Under-Cabinet Range Hood
**DISCONTINUED** Broan® 30-Inch Convertible Under-Cabinet Range Hood, Black
Features
![HVI Certified](https://www.broan-nutone.com/getmedia/e07fbc5a-3ec8-4b01-ba12-e340f82da63d/HVILogo.PNG?width=237&height=183&ext=.png)
HVI Certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.
- 250 CFM blower operates at 1.5 sones at normal speed
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (bulbs included)
- Hidden on/off rocker switches control two blower speeds and two light levels
- Dual dishwasher-safe, open-mesh filters provide efficient grease removal
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Specs
- Downloads
Filter Type | Open Mesh |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Halogen |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 50 |
Light Bulbs Included | Yes |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish |
|
Rated Amps | 1.4 |
Product Depth | 21 |
Product Height | 5" |
Product Width | 30" |
Built-In Timer | No |
Capture Efficiency | 97.5 |
CFM | 250 |
Diameter | 7" Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | GU10 MR16 |
Manufacturer Warranty | 1 Year |
Wattage | 168 |
