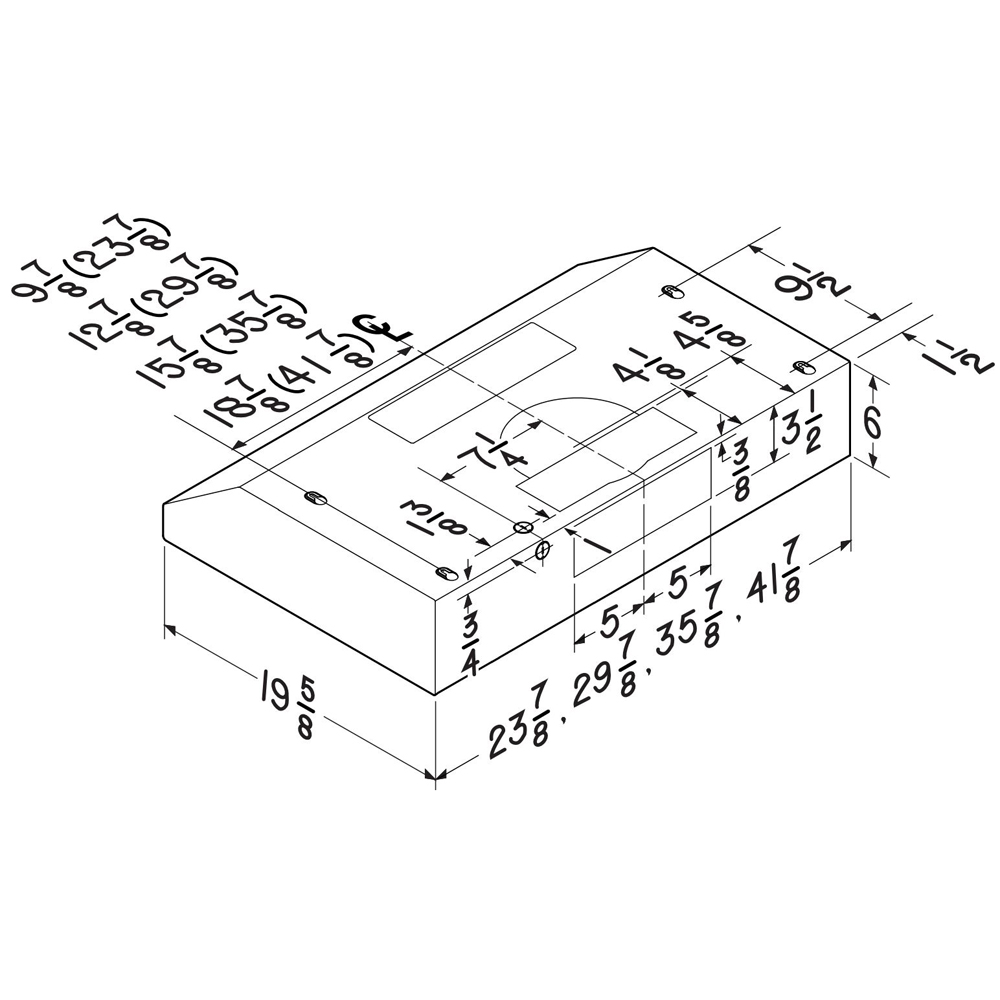

![BCSD1 Dimensional Drawing](https://www.broan-nutone.com/getmedia/21729802-7167-4b11-90df-89f400c99459/BCSD1_6_dim.jpg?width=1000&height=1000&ext=.jpg)
Broan® Glacier BCSD1 Series Under-Cabinet Range Hood
Glacier 42-Inch 300 Max Blower CFM 5 Sones Black Range Hood
This under-cabinet convertible range hood features a clean, contemporary shape to complement nearly any kitchen design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 300 Max Blower CFM-rated hood provides 97.4% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking. The quiet-running Glacier is also designed with smooth flow technology, which streamlines the path of air for improved efficiency and noise reduction. Easy-flip rocker switches control the 2 fan speeds and halogen lighting system. Using the included EZ1® system, Glacier can easily be installed by one person in up to half the time of a standard install.
Model:
BCSD142BL
$202.00
retailer prices may vary
Features
- Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
- Hidden rocker switches adjust fan speed and lighting levels
- Captur™ system and 300 Max Blower CFM is 97.4% efficient in removal of smoke and odor from cooking
- Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HFP42)
- 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
- 2-halogen bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
- 1-year limited manufacturer’s warranty
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
![Find the nearest Certified Broan-NuTone Fresh Air Specialist](https://www.broan-nutone.com/getmedia/021482c0-9531-4514-ab2f-d606335efc2f/Premier-Pro-Logo.png?width=273&height=215&ext=.png)
Need Installation?
Find the nearest Certified Broan-NuTone Fresh Air Specialist
When you’re ready to put a Broan-NuTone fresh air system into your home, we’re ready to help you find a certified installer. Find one of our Premier Pro Fresh Air Specialists to help you Come Home to Fresh Air.
Search for Local InstallersFilter Type | Open Mesh |
---|---|
Heat Sentryâ„¢ | No |
HVI Certified | Yes |
Lighting Type | Halogen |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 50 |
Light Bulbs Included | No |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish |
|
Rated Amps | 1.4 |
Product Depth | 19.625 |
Product Height | 6" |
Product Width | 42" |
Built-In Timer | No |
Capture Efficiency | 97.4 |
CFM | 300 Max |
Diameter | 7" Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | GU10 MR16 |
Manufacturer Warranty | 1 Year |
Wattage | 168 |
