Broan® Glacier BCDJ1 Series Under-Cabinet Range Hood
**DISCONTINUED** Broan® Glacier 36-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM, Black
Model:
BCDJ136BL
Features
1-Person Installation in Half the Time
HVI Certified
UL Listed
- The Captur™ system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
- 450 Max bower CFM operates at 0.5 sones at normal speed
- 3-Speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry® and delay off
- Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
- The filter clean reminder ensures they will always maintain a high level of efficiency
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Ductless capable with use of charcoal filters, sold separately
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
| Filter Type | Deluxe Micro Mesh |
|---|---|
| Heat Sentry™ | Yes |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 0.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 3 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Switch Control Type | Push Button with LCD |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish |
|
| Rated Amps | 1.4 |

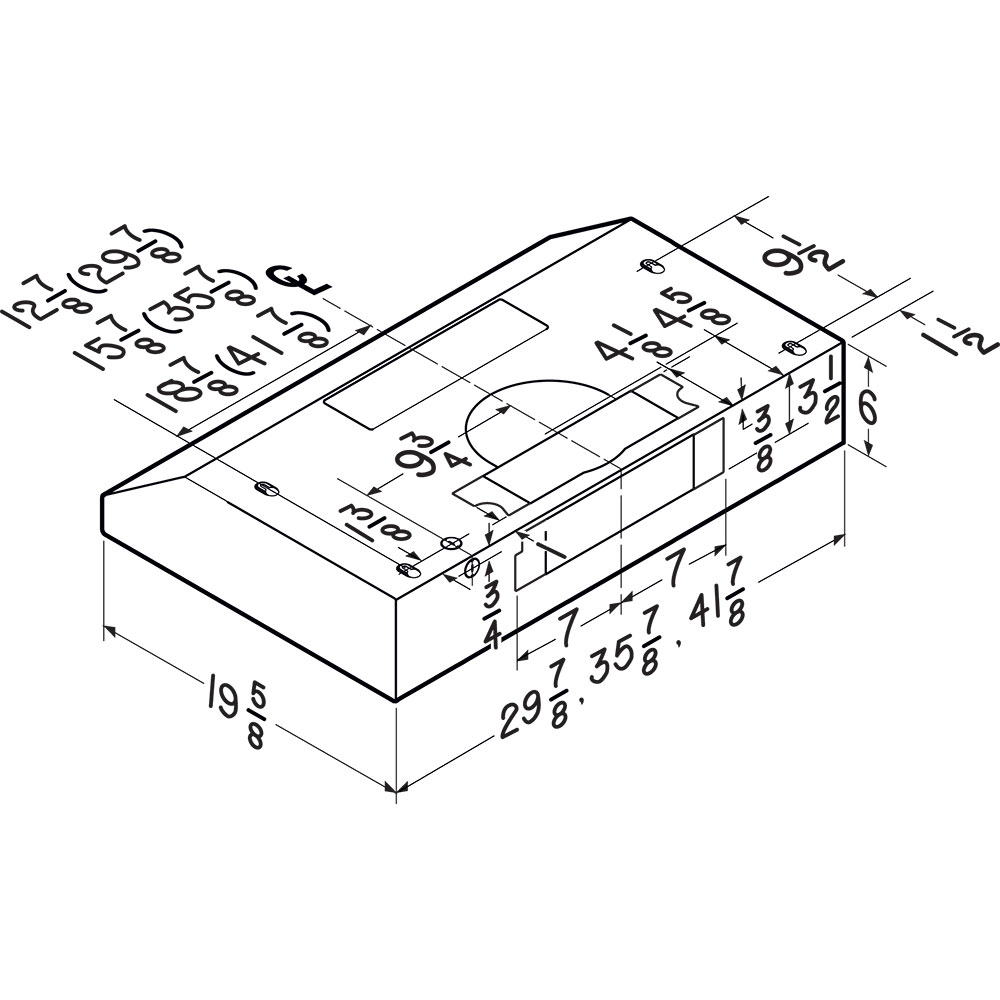

| Product Depth | 19.625" |
| Product Height | 6" |
| Product Width | 36" |
| Built-In Timer | No |
| Capture Efficiency | 98.5 |
| CFM | 450 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
