Broan® Glacier BCDJ1 Series Under-Cabinet Range Hood

Broan® 30-Inch Convertible Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM, White

The luxury of an LCD display and deluxe micro-mesh filters will make any meal preparation delightful. And, the Glacier range hood's contemporary shape complements any kitchen design.


Color Finish


Product Width


Model:

BCDJ130WH

Features

  • The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM
  • Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
  • Bright, three-level LED modules—supported by a three-year warranty—illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
  • Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry® and delay off
  • Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
  • Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
  • The filter clean reminder ensures they will always maintain a high level of efficiency
  • EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • Specs
  • Downloads
  • Videos

print

Filter Type Deluxe Micro Mesh
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
Sones 0.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® Qualified No
Light Bulb Wattage 4.5
Light Bulbs Included Yes
Light Levels 3
Material Steel
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable Yes
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Push Button with LCD
Rated Voltage 120
Boost Mode No
Country of Origin Mexico
Accommodates Ceiling Height
Color Finish
Minimum Height Above Cook Top
Rated Amps 1.4

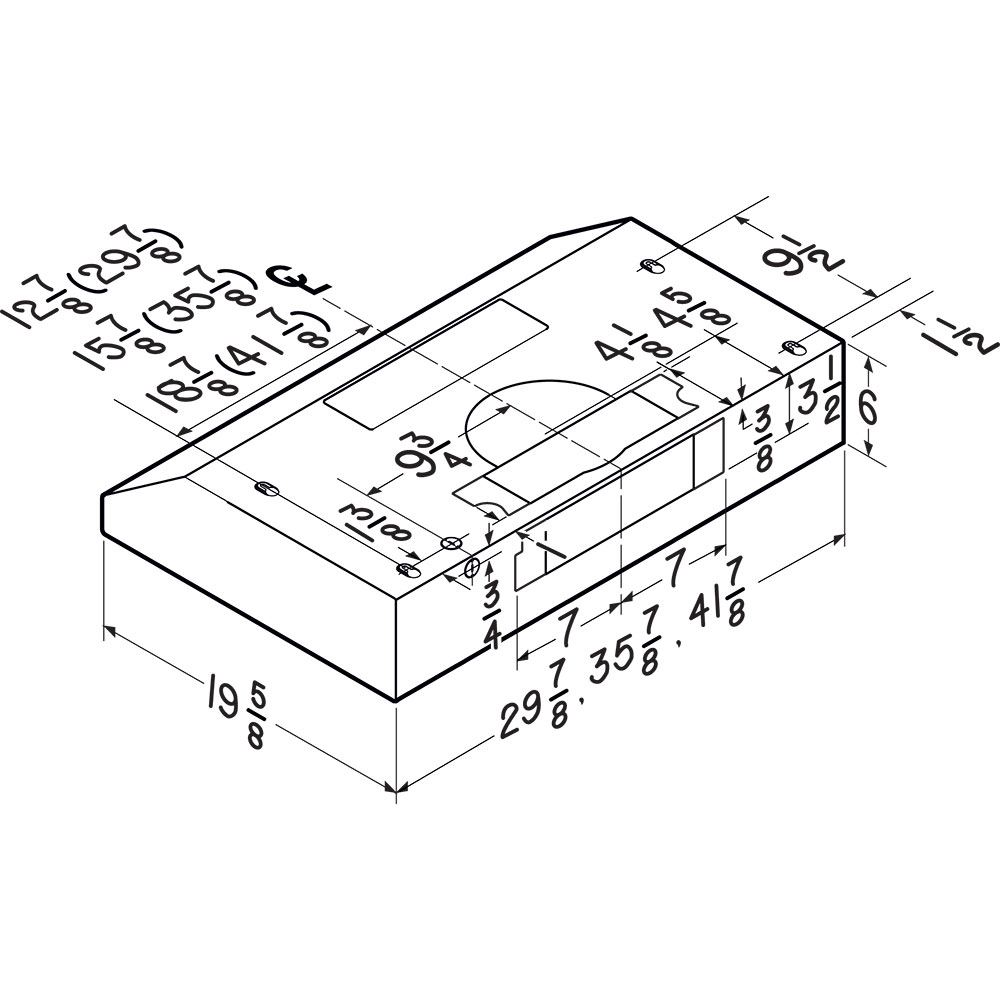

Product Depth 19.625"
Height 6"
Product Width 30"
Built-In Timer No
Capture Efficiency 98.5
CFM 400
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168
