BCDF1 Series Under-Cabinet Range Hood

Broan® Glacier 30-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM, Black Stainless Steel

This under-cabinet convertible range hood features a clean, contemporary shape to complement nearly any kitchen design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 375 Max Blower CFM-rated hood provides 98.1% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking. The quiet-running Glacier is also designed with smooth flow technology, which streamlines the path of air for improved efficiency and noise reduction. Tap Touch electronic controls operate the 3 fan speeds and advanced LED lighting system. Using the included EZ1® system, Glacier can easily be installed by one person in up to half the time of a standard install.


Color Finish


Product Width


Model:

BCDF130BLS

$402.00

retailer prices may vary

Features

1-Person Installation in Half the Time

1-Person Installation in Half the Time

HVI Certified

HVI Certified

UL Listed

UL Listed

  • Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
  • Tap-touch capacitive control features a smooth, easy-to-clean surface
  • Captur™ system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
  • Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
  • Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
  • Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
  • Hidden louvers on top of hood exhaust away from cabinetry
  • EZ1® system makes it easy for single-person installation in less than half the time of traditional methods
  • Limited 1 year warranty
  • Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
  • Non-duct capable with use of charcoal filters (model HPF30 [service part #S97020466]), sold separately
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Find the nearest Certified Broan-NuTone Fresh Air Specialist
Need Installation?

Find the nearest Certified Broan-NuTone Fresh Air Specialist

When you’re ready to put a Broan-NuTone fresh air system into your home, we’re ready to help you find a certified installer. Find one of our Premier Pro Fresh Air Specialists to help you Come Home to Fresh Air.

Search for Local Installers

print

Filter Type Micro Mesh
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 1.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulb Wattage 4.5
Light Bulbs Included Yes
Light Levels 2
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Capacitive Touch
Rated Voltage 120
Boost Mode No
Color Finish
  • Black Stainless Steel
Rated Amps 0.65

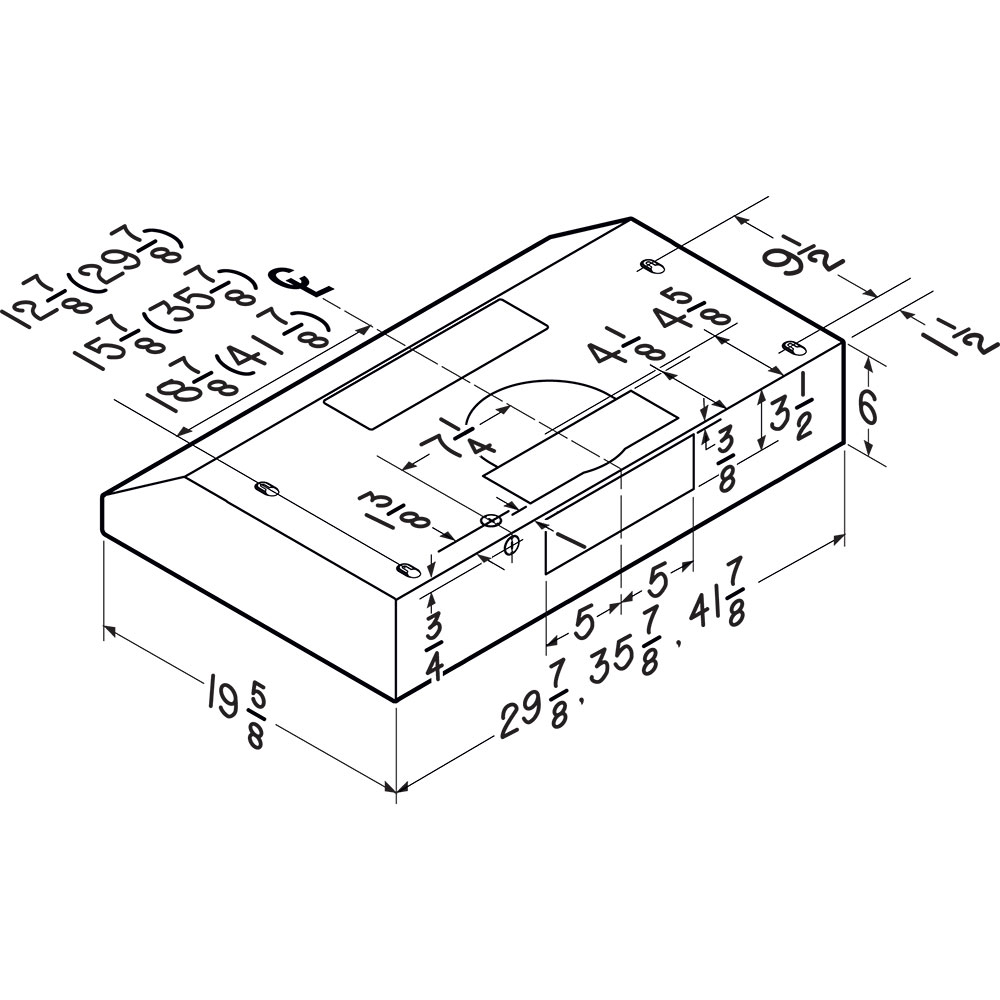

Product Depth 19.625"
Product Height 6"
Product Width 30"
Built-In Timer No
Capture Efficiency 98.1
CFM 375 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 78

Broan Single Blower Under-Cabinet Range Hood Installation
