Product Discontinued
NuTone® Mantra AVSF1 Series Under-Cabinet Range Hood
**DISCONTINUED** NuTone® Mantra 36-Inch 375 MAX Blower CFM 1.5 Sones Black Range Hood
Model:
AVSF136BL
Features
Compatible with Overture™ Connected IAQ System
HVI Certified
1-Person Installation in Half the Time
- Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
- Hidden rocker switches control fan speed and operate light
- Captur™ exhaust system and 375 MAX Blower CFM is 98.1% efficient in removal of smoke and odor from cooking
- Optional (Sold Seperately), Optional (Sold Separately), Optional (Sold Separately), Optional (Sold Separately)
- 2 dishwasher-safe open mesh filters feature high-flow technology to grab more airborne grease
- Heat-resistant LED lighting with 3-year warranty provides crisp, even light over the entire cook surface
- Hidden louvers on top of hood exhaust away from cabinetry
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
- 1-year limited manufacturer’s warranty
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
| Filter Type | Open Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish |
|
| Rated Amps | 0.65 |

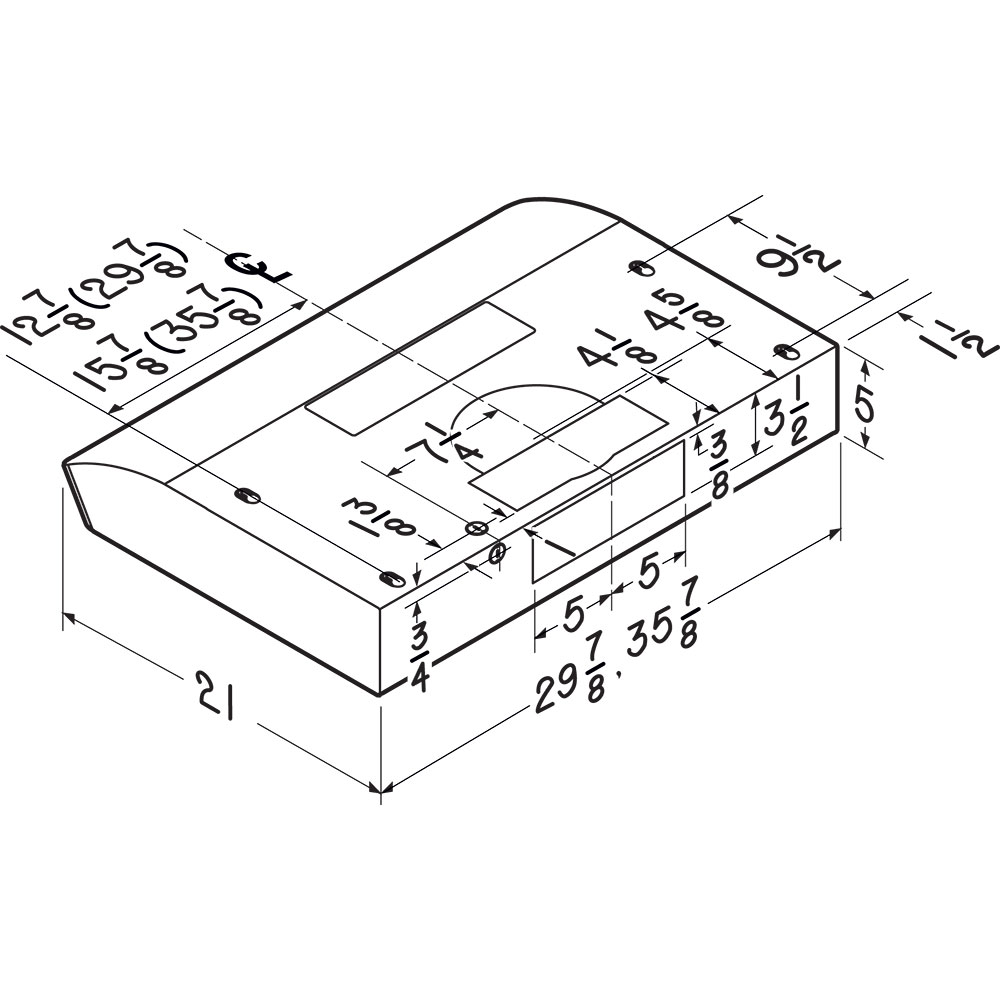

| Product Depth | 21" |
| Product Height | 5" |
| Product Width | 36" |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 375 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
