Broan® Elite Alta 3 Series Under-Cabinet Range Hood

Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Stainless Steel

The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Infrared controls, hybrid baffle filters and LED lighting lends a pro-style edge to your kitchen.


Color Finish


Product Width


Model:

ALT330SS

Features

1-Person Installation in Half the Time

1-Person Installation in Half the Time

HVI Certified

HVI Certified

UL Listed

UL Listed

  • Model replaced BQLA130SS
  • The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 450 Max CFM
  • Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
  • Bright, three-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
  • Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
  • Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture
  • EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
  • Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
  • Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)

print

Filter Type Hybrid Baffle
Heat Sentry™ Yes
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 0.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulb Wattage 4.5
Light Bulbs Included Yes
Light Levels 3
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Infrared
Rated Voltage 120
Boost Mode No
Country of Origin Mexico
Color Finish
  • Stainless Steel
Rated Amps 1.4

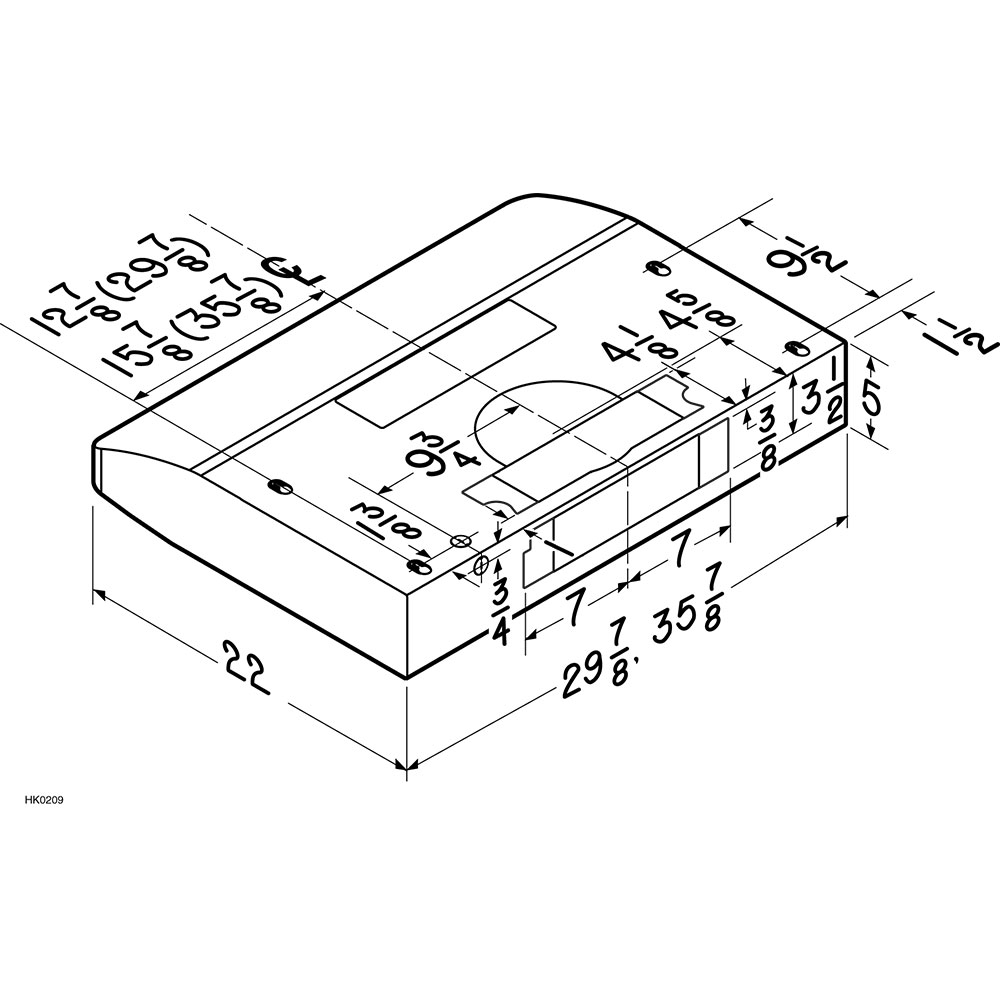

Product Depth 22
Product Height 5"
Product Width 30"
Built-In Timer No
Capture Efficiency 98.5
CFM 450 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168
