Product Discontinued
Broan® Elite Alta 2 Series Under-Cabinet Range Hood
**DISCONTINUED** Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Black, 375 Max Blower CFM
Features
![1-Person Installation in Half the Time](https://www.broan-nutone.com/getmedia/21e62f54-8d30-477b-a3b8-6fa6dfe913fe/EZ1-badge.jpg?width=656&height=608&ext=.jpg)
1-Person Installation in Half the Time
![HVI Certified](https://www.broan-nutone.com/getmedia/e07fbc5a-3ec8-4b01-ba12-e340f82da63d/HVILogo.PNG?width=237&height=183&ext=.png)
HVI Certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- Model replaced BQDD136BL
- Captur™ systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- Bright, two-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Specs
- Downloads
Filter Type | Deluxe Micro Mesh |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | LED |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 4.5 |
Light Bulbs Included | Yes |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 3 |
Switch Control Type | Capacitive Touch |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish |
|
Rated Amps | 0.65 |

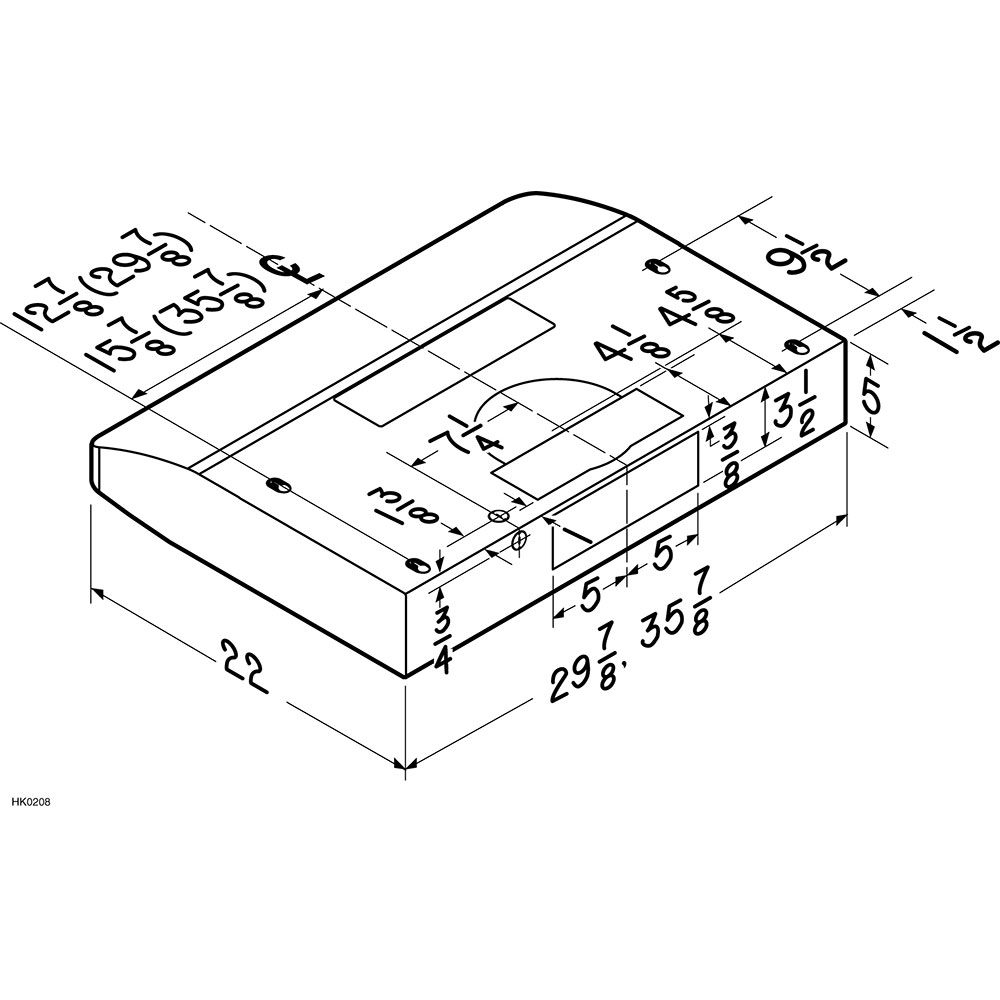

Product Depth | 22 |
Product Height | 5" |
Product Width | 36" |
Built-In Timer | No |
Capture Efficiency | 98.1 |
CFM | 375 Max |
Diameter | 7" Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | Integrated LED Module |
Light Color Temp | 3000 |
Manufacturer Warranty | 1 Year, 3 Year LED module |
Wattage | 78 |
