Product Discontinued
NuTone® Osmos AHSA1 Series Under-Cabinet Range Hood
**DISCONTINUED** NuTone® 30-Inch Convertible Under-Cabinet Range Hood, 250 CFM, White
Model:
AHSA130WW
Features
HVI Certified
UL Listed
- Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
- Hidden rocker switches adjust fan speed and lighting levels
- Quiet operation at both high and low speeds
- Captur™ exhaust system and 250 CFM blower is up to 97.4% efficient in removal of smoke and odor from cooking
- Convertible to accommodate either top or rear venting applications, or non-ducted operation using charcoal filters, which are sold separately (Filter Model S97020464)
- Dishwasher-safe open mesh filter features high-flow technology to grab more airborne grease
- 2 halogen bulbs, included, provide warm light over the cook surface, adjustable to high or low levels
- Hidden louvers on top of hood exhaust away from cabinetry
- Open-bottom, under-cabinet convertible range hood features stylish, curved design and hidden controls to blend neatly into any kitchen
- 1-year limited manufacturer’s warranty
- Non-duct capable with use of charcoal filters (NuTone model HPF1 sold separately)
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
Filter Type | Open Mesh |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Halogen |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 50 |
Light Bulbs Included | Yes |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish |
|
Rated Amps | 1.4 |

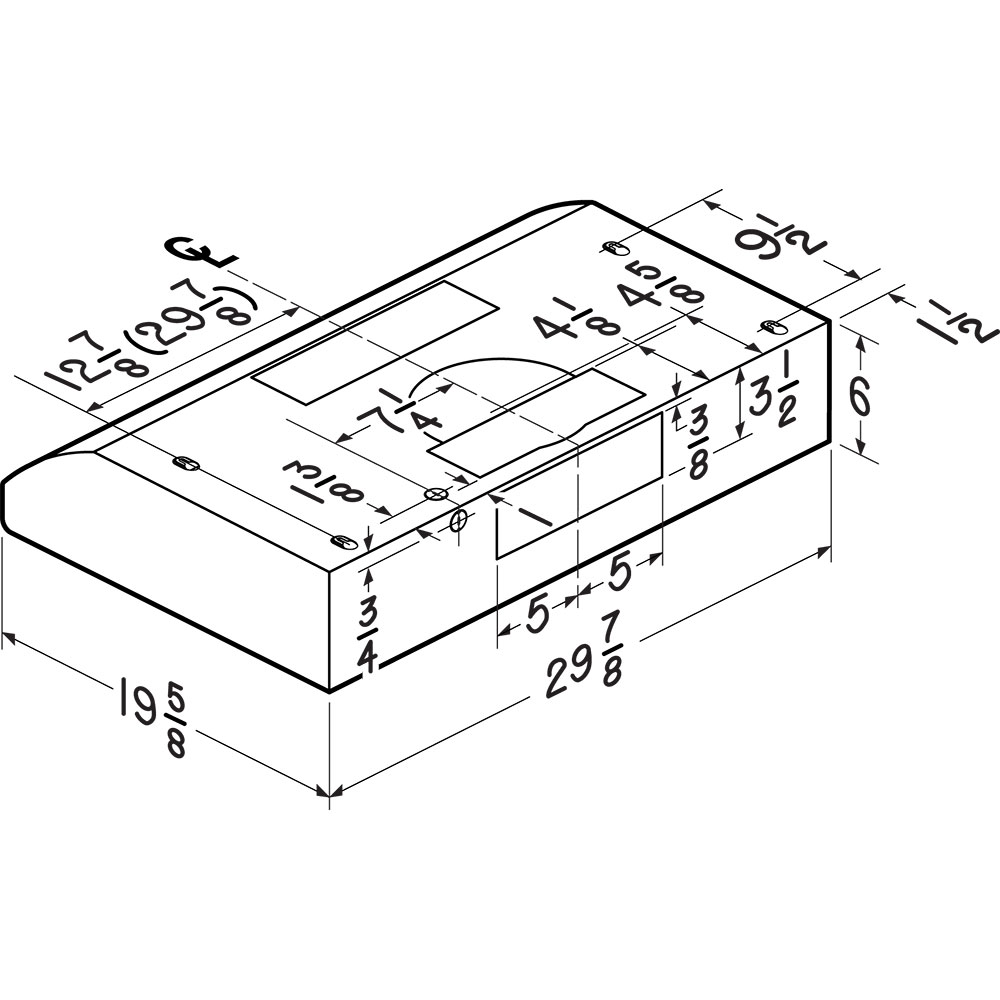

Product Depth | 19.625" |
Product Height | 6" |
Product Width | 30" |
Built-In Timer | No |
Capture Efficiency | 97.4 |
CFM | 250 |
Diameter | 7" Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | GU10 MR16 |
Manufacturer Warranty | 1 year |
