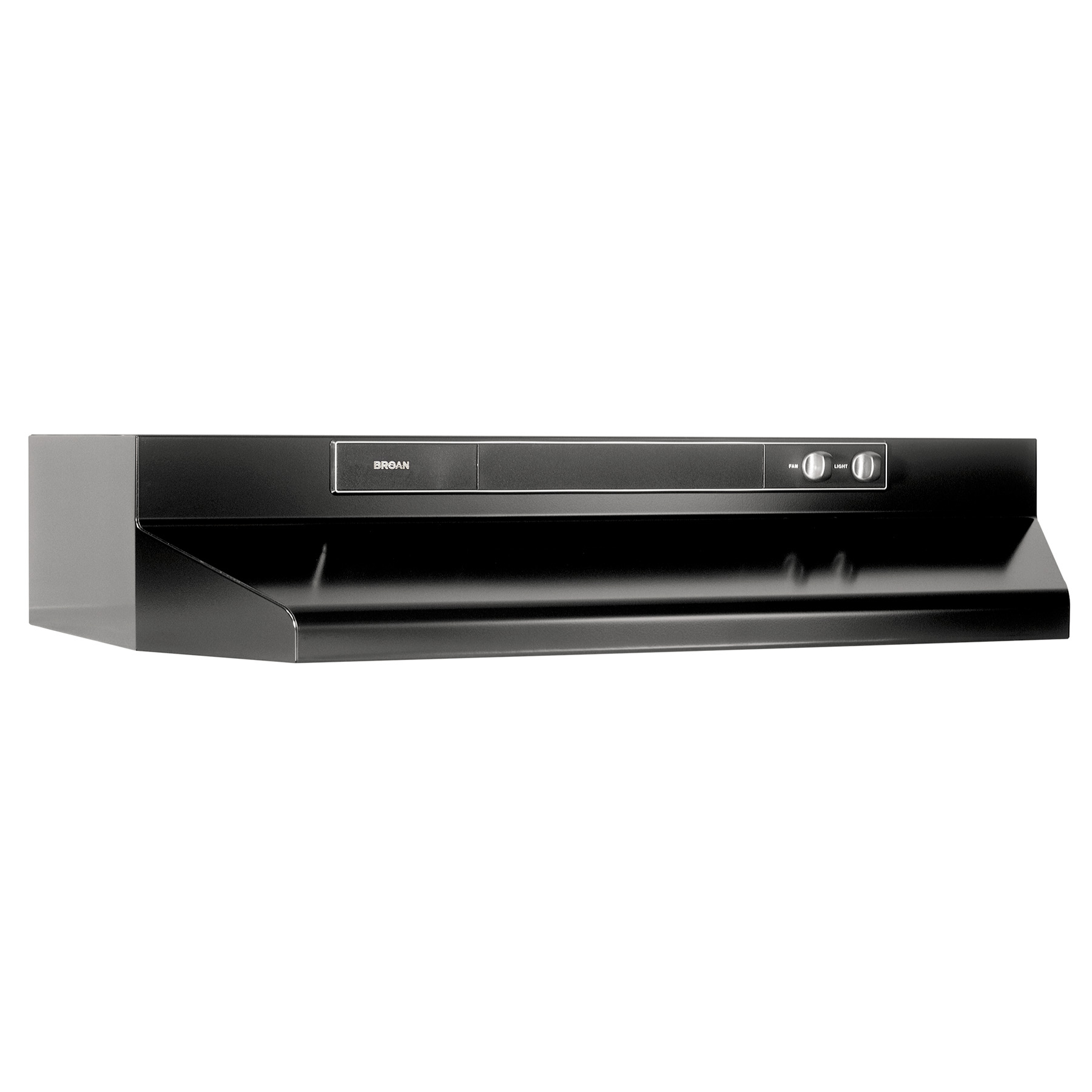

Broan® 46000 Series Under-Cabinet Range Hood

Broan® 30-Inch Convertible Under-Cabinet Range Hood, 220 CFM, Black

With a convertible design that offers both ducted and ductless installation, the Broan 46000 Series 30 in. Convertible Range Hood makes it easy to tackle tough venting jobs in your kitchen. The range hood's adjustable dial controls make it easy to choose between variable fan motor speeds. The 220 CFM blower helps quickly remove smoke and cooking odors from the air. The reusable aluminum mesh filter removes easily from the hood and supports dishwasher cleaning, making maintenance a snap. 2-level cooktop lighting offers convenient illumination. A 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter are included for easy installation.


Color Finish



Model:

463023

Features

  • Install as ducted or non-ducted to fit a variety of installation needs
  • Rotary dial controls for easy operation
  • 220 CFM blower helps quickly remove smoke and cooking odors from the air
  • Top or rear exhaust option lets you connect the ductwork to suit your installation requirement

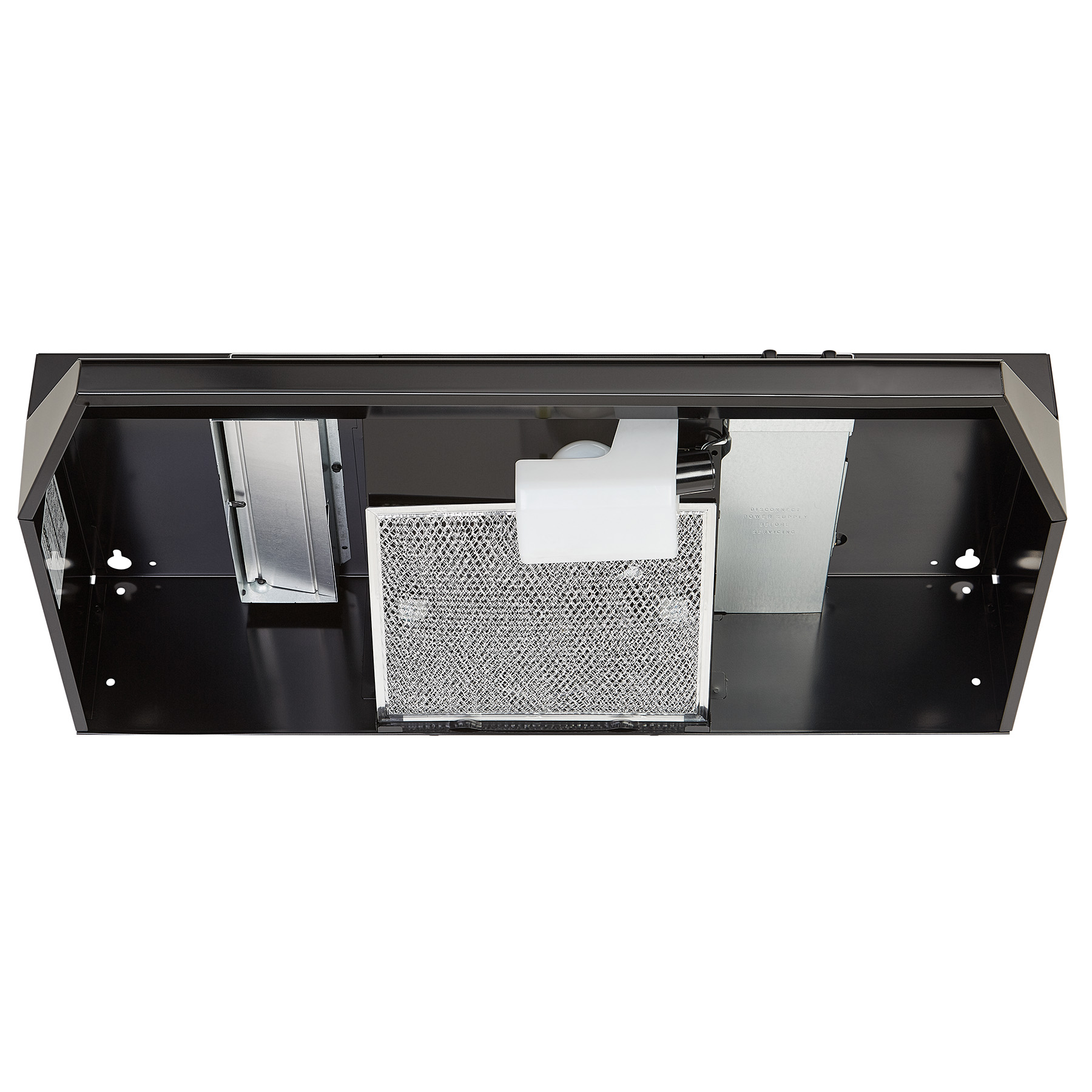

  • Reusable aluminum mesh filter is dishwasher safe for easy cleaning
  • 75-Watt cooktop lighting with protective polymeric lens for easy cooktop viewing (bulb not included)
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation
  • Mitered sides and hemmed bottom for safety and good looks
  • One year limited warranty
  • UL listed and HVI-2100 certified for your safety and protection
  • Specs
  • Downloads

print

Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type Incandescent
Sones 7.5
UL Listed Yes
ADA Compliance No
Damper Included No
ENERGY STAR® Qualified No
Light Bulb Wattage
Light Bulbs Included No
Light Levels 2
Material Steel
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable Yes
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels Variable
Switch Control Type Rotary
Rated Voltage 120
Boost Mode No
Country of Origin United States
Accommodates Ceiling Height
CFM Airflow Max 0
Color Finish
Minimum Height Above Cook Top
Rated Amps 2.5
Product Depth 17.5"
Height 6"
Product Width 30"
Built-In Timer No
Capture Efficiency
CFM 220
Diameter 7" Round
Vent Type
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) A19
Light Color Temp
Manufacturer Warranty 1 Year
Wattage 300
