Product Discontinued

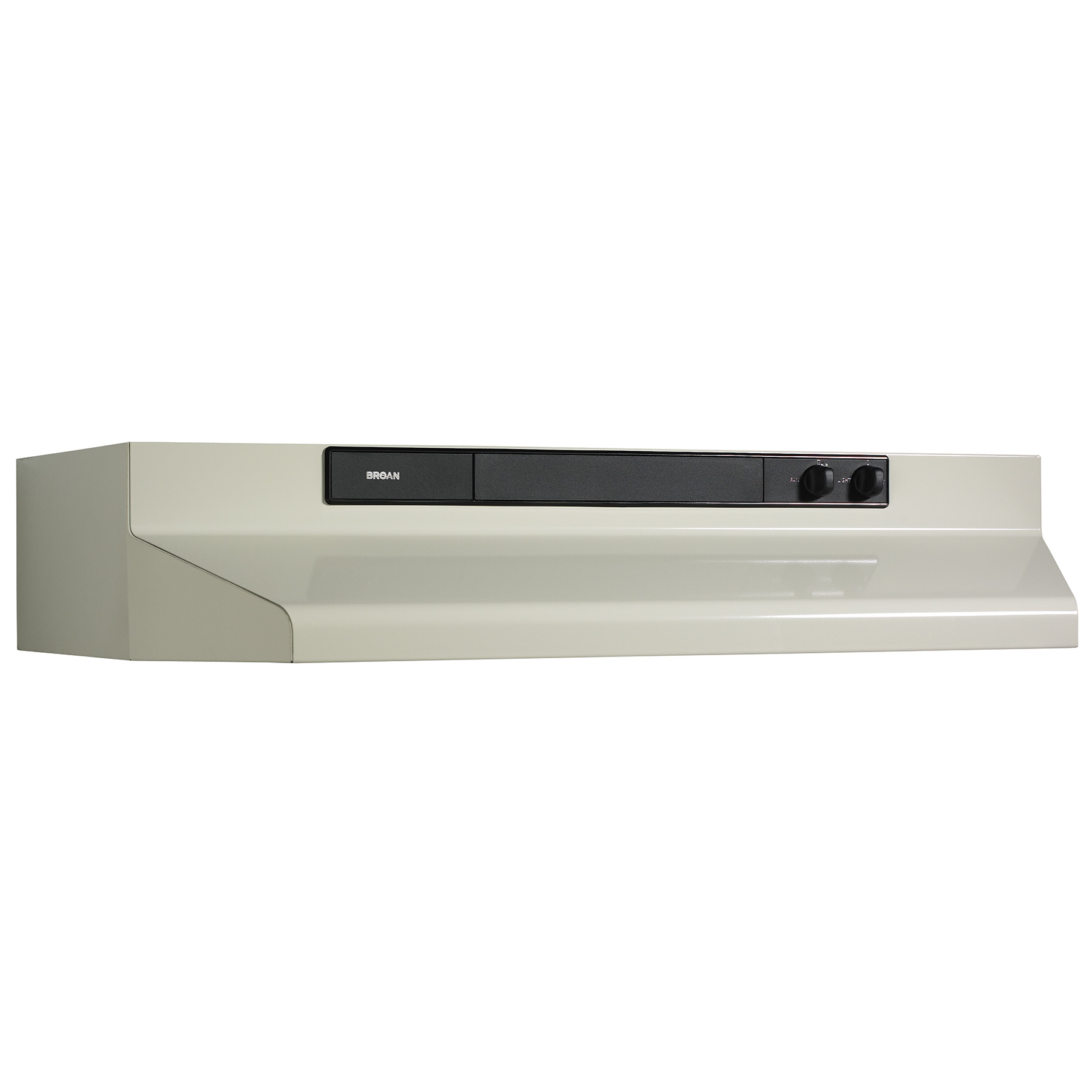

Broan® 46000 Series Under-Cabinet Range Hood
**DISCONTINUED** Broan® 30-Inch Convertible Under-Cabinet Range Hood, 220 CFM, Bisque
Features
![HVI Certified](https://www.broan-nutone.com/getmedia/e07fbc5a-3ec8-4b01-ba12-e340f82da63d/HVILogo.PNG?width=237&height=183&ext=.png)
HVI Certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- Install as ducted or non-ducted to fit a variety of installation needs
- Rotary dial controls for easy operation
- 220 CFM blower helps quickly remove smoke and cooking odors from the air
- Top or rear exhaust option lets you connect the ductwork to suit your installation requirement

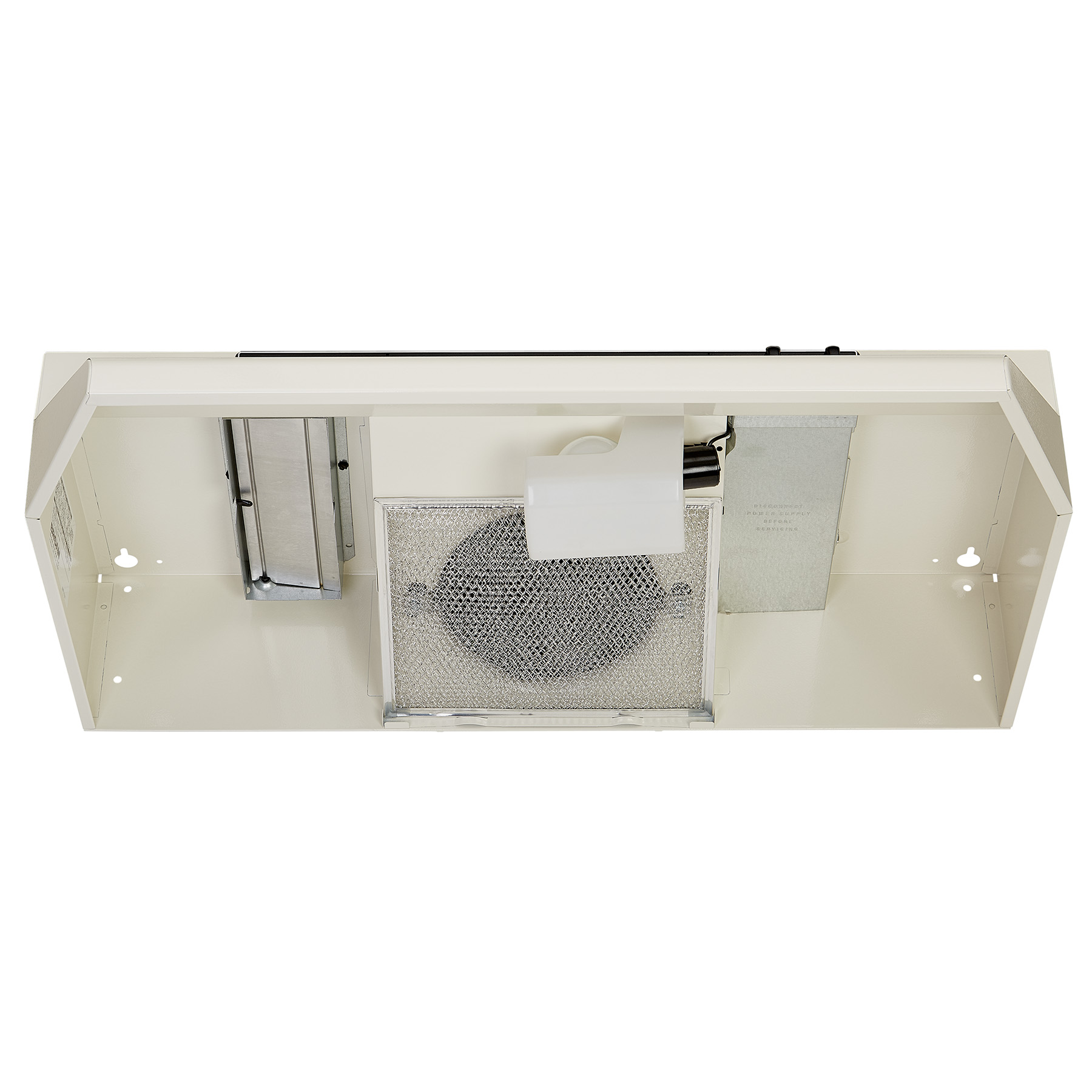

- Reusable aluminum mesh filter is dishwasher safe for easy cleaning
- 75-Watt cooktop lighting with protective polymeric lens for easy cooktop viewing (bulb not included)
- Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation
- Mitered sides and hemmed bottom for safety and good looks
- One year limited warranty
- UL listed and HVI-2100 certified for your safety and protection
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
Filter Type | Aluminum |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Incandescent |
Sound Level (Sones) | 7.5 |
UL Listed | Yes |
ADA Compliance | No |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | Variable |
Switch Control Type | Rotary |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | United States |
Color Finish |
|
Rated Amps | 2.5 |
Product Depth | 17.5" |
Product Height | 6" |
Product Width | 30" |
Built-In Timer | No |
CFM | 220 |
Diameter | 7" Round |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | A19 |
Manufacturer Warranty | 1 Year |
Wattage | 300 |
