Product Discontinued

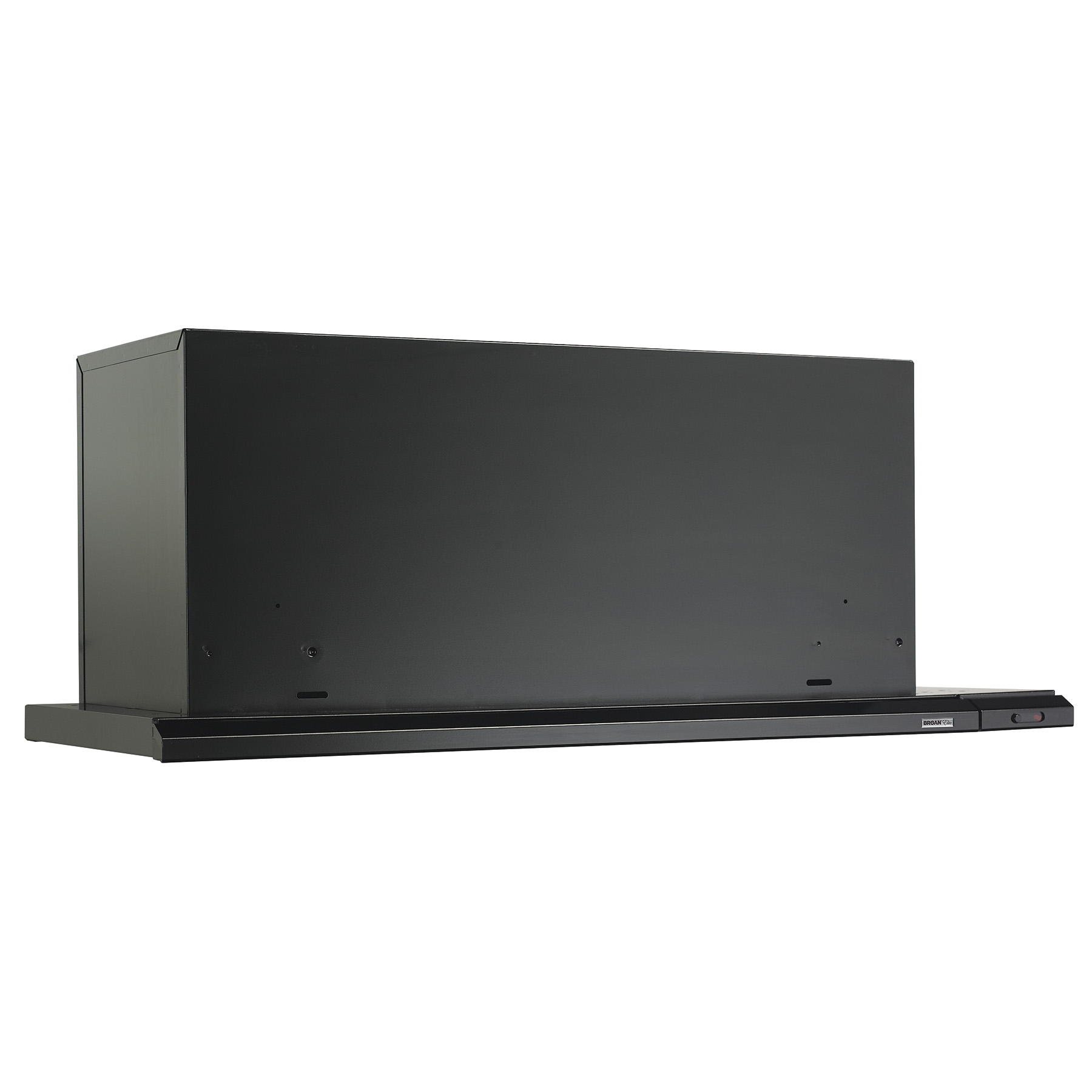

Broan® Elite 15000 Silhouette Series Under-Cabinet Range Hood
DISCONTINUED-Broan® Elite 36-Inch Under-Cabinet Slide-Out Range Hood w/ Light, Black
Features
![HVI Certified](https://www.broan-nutone.com/getmedia/e07fbc5a-3ec8-4b01-ba12-e340f82da63d/HVILogo.PNG?width=237&height=183&ext=.png)
HVI Certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed

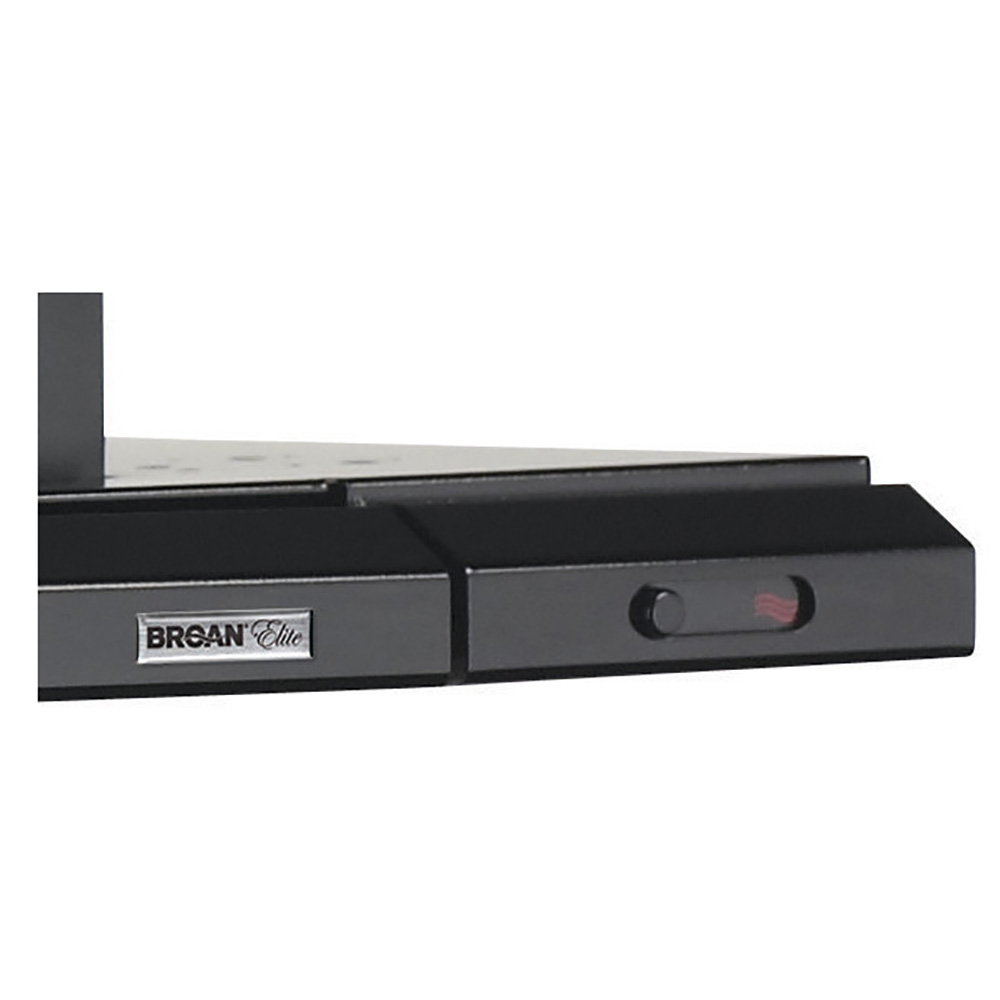

- Easy to use slide control automatically recalls last setting used
- Front-mounted solid state speed control remembers last setting used; Heat Sentry® automatically turns blower on to high when excess heat is detected
- Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
- Foam filter (included) is washable for easy maintenance
- 24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)
- Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
- Black finish for a modern look
- 1 year limited warranty
- UL Listed & HVI-2100 Certified for your safety and protection
- Specs
- Downloads
Filter Type | MicroFoam |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Sound Level (Sones) | 4.5 |
UL Listed | Yes |
ADA Compliance | No |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 2 |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | No |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | Variable |
Rated Voltage | 120 |
Boost Mode | No |
Color Finish |
|
Rated Amps | 3.7 |
Product Height | 10-1/2" |
Product Width | 36" |
Built-In Timer | No |
CFM | 300 |
Duct Direction | Vertical |
Bulb (Recommended Type) | F20T12 Fluorescent |
Manufacturer Warranty | 1 Year |
Wattage | 444 |
