Product Discontinued
Broan® Elite 15000 Silhouette Series Under-Cabinet Range Hood
DISCONTINUED-Broan® Elite 36-Inch Under-Cabinet Slide-Out Range Hood w/ Light, White
Features

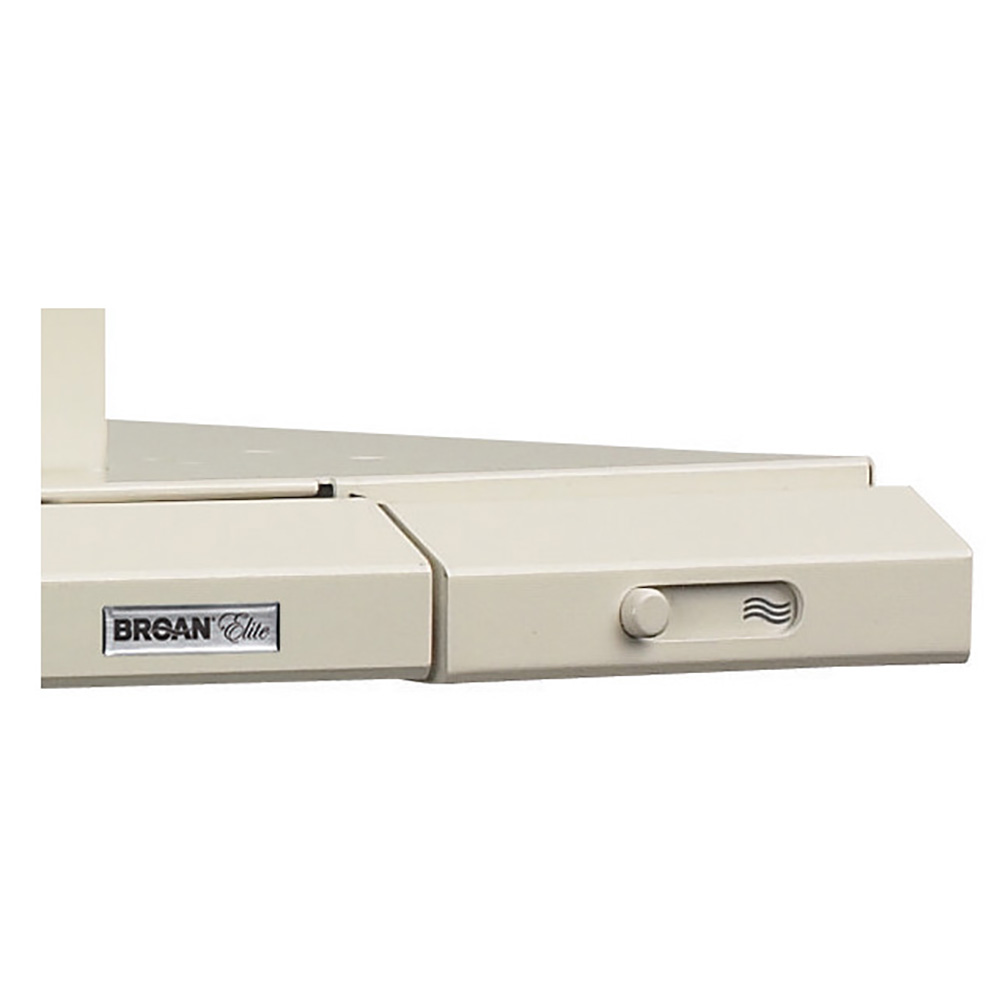

- Easy to use slide control automatically recalls last setting used
- Front-mounted solid state speed control remembers last setting used; Heat Sentry® automatically turns blower on to high when excess heat is detected
- Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
- Foam filter (included) is washable for easy maintenance
- 24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)

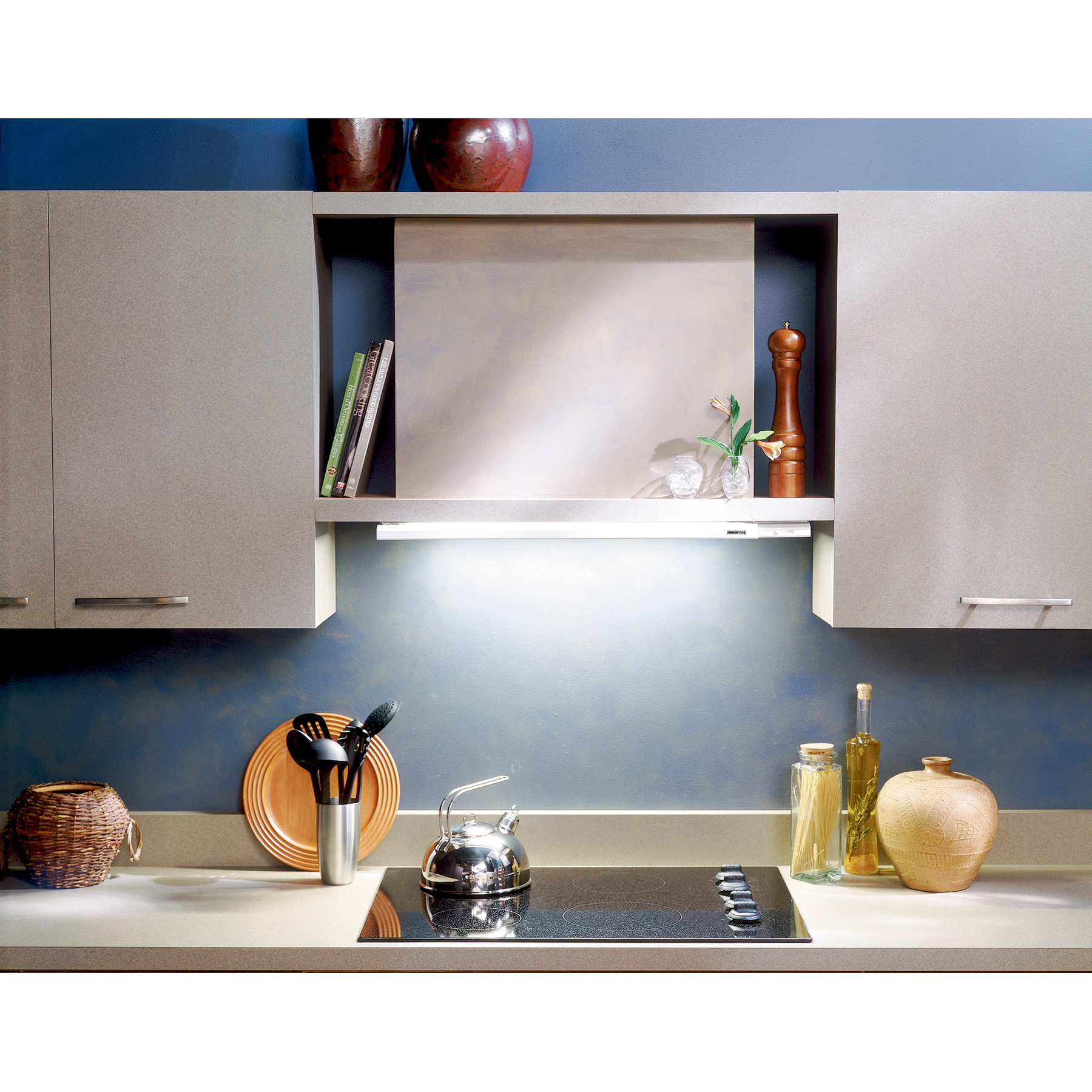

- Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
- Specs
- Downloads
Filter Type | MicroFoam |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Fluorescent |
Sound Level (Sones) | 4.5 |
UL Listed | Yes |
ADA Compliance | No |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 1 |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | No |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | Variable |
Rated Voltage | 120 |
Boost Mode | No |
Color Finish |
|
Rated Amps | 3.7 |

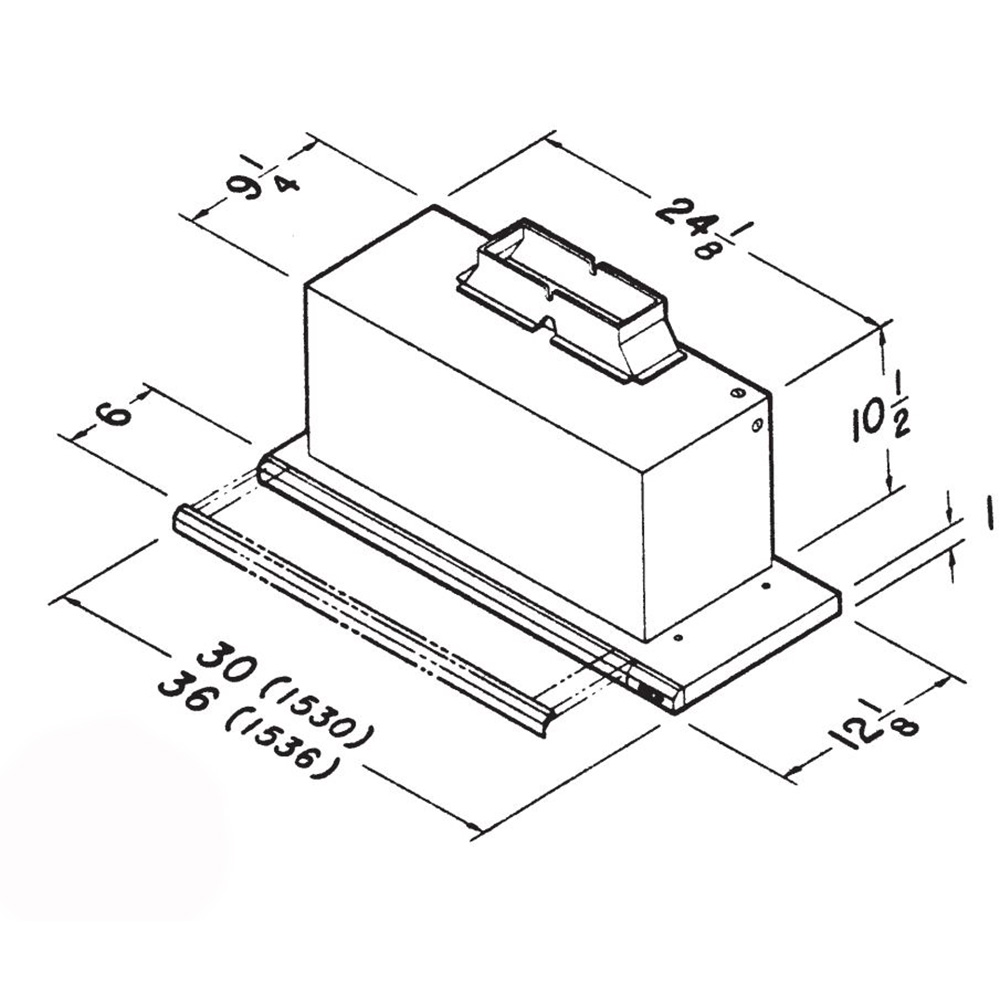

Product Height | 10-1/2" |
Product Width | 36" |
Built-In Timer | No |
CFM | 300 |
Duct Direction | Vertical |
Bulb (Recommended Type) | F20T12 Fluorescent |
Manufacturer Warranty | 1 Year |
Wattage | 444 |
