Broan® Rough-In Kit for Custom Insert Range Hood

This Broan 103123 Wood Hood Rough-in Kit is required for installation of the Model 103023 Custom Hood Kit. The Rough-in Kit provides a convenient way to locate the ductwork and electrical wiring prior to installing the custom hood. It can be mounted horizontally or vertically to allow straight-up or through the wall venting options. The rough-in kit does not support the weight of the Wood Hood or Wood Hood Kit.




  • Works with Model 103023 Custom Hood Kit to provide convenient pre-installation location of duct and electrical service
  • Can be mounted either vertically or horizontally

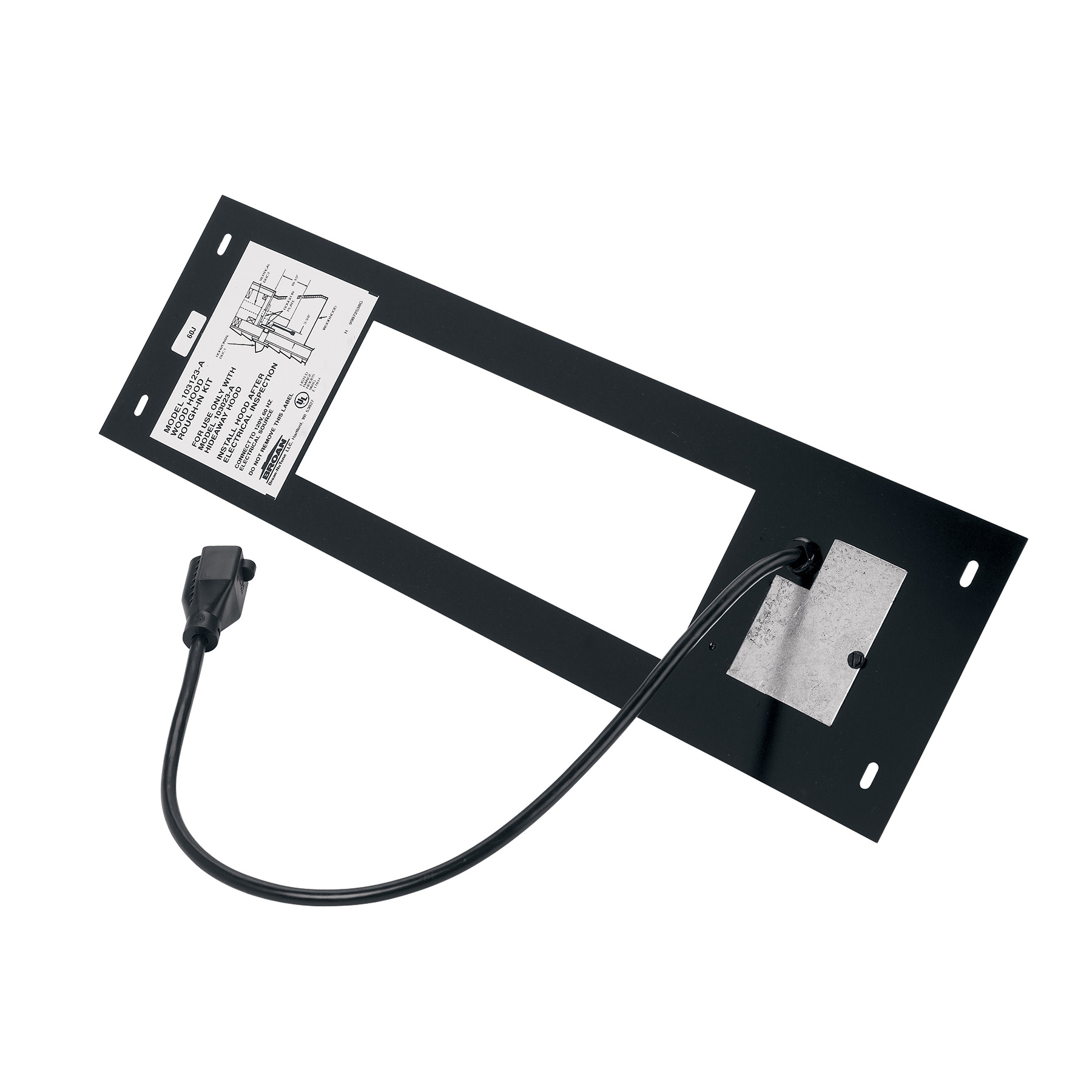

  • Kit consists of the plate with electrical outlet box, power cord, and mounting hardware
  • 1 year limited warranty
  • UL Listed for your safety and protection
  • Installation instructions are included
  • Specs
  • Downloads


Filter Type
Heat Sentry™ No
HVI Certified Yes
Lighting Type
Sones 0
UL Listed Yes
ADA Compliance No
Damper Included No
ENERGY STAR® certified No
Light Bulb Wattage
Light Bulbs Included No
Light Levels
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable No
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 1
Switch Control Type
Rated Voltage
Boost Mode No
Country of Origin
Accommodates Ceiling Height
Color Finish
Minimum Height Above Cook Top
Rated Amps
Product Depth
Height 24
Product Width
Built-In Timer No
Capture Efficiency
CFM 1200
Vent Type
Duct Direction Horizontal/Vertical
Bulb (Recommended Type)
Light Color Temp
Manufacturer Warranty 1 Year
