BROAN 9810 and 9815 Series

Broan® Wall Heater, High-Capacity, 1500W Heater, 120/240V

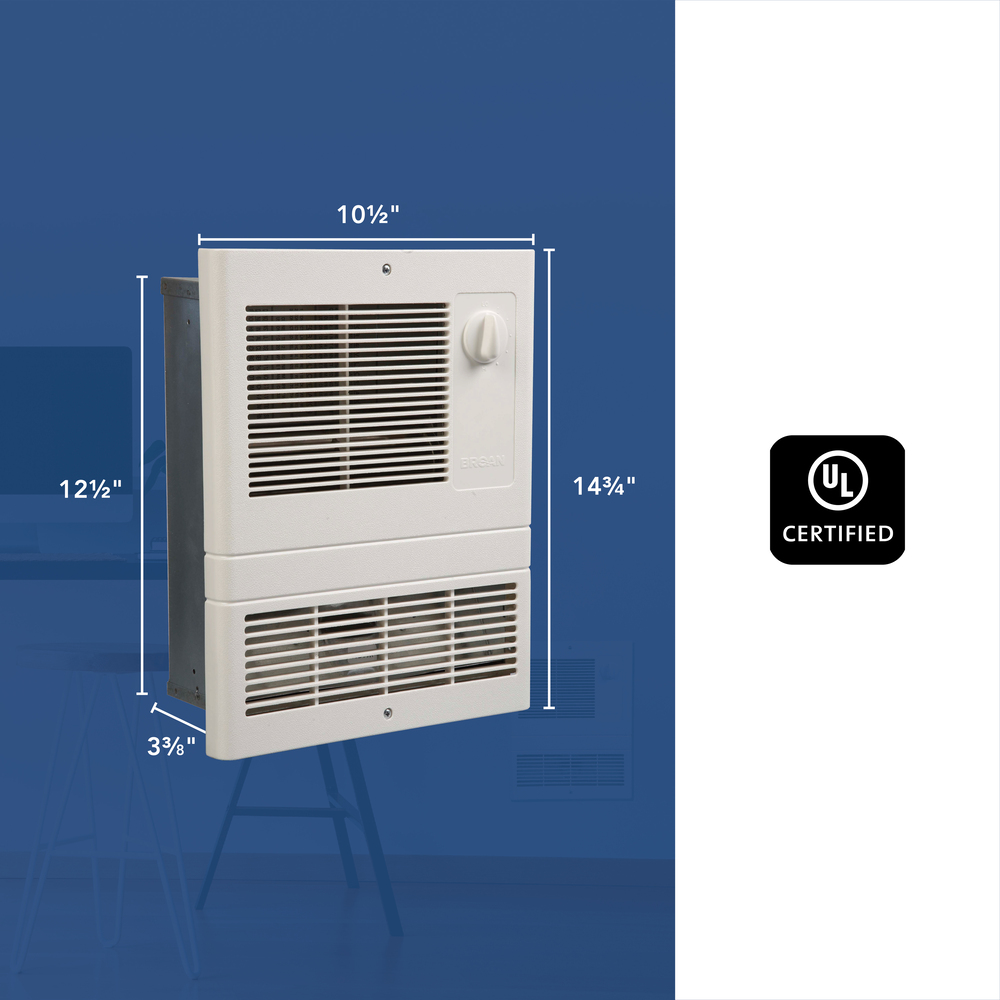

The Broan 10-1/2 in. x 12-1/2 in. 1,500-Watt White Fan-Forced Wall Heater is a large-capacity unit ideal for high heat-loss areas like lobbies, entrance ways and vestibules. This wall heater features a built-in, adjustable thermostat to help you control the temperature of a specific area. This wall heater wires easily to accommodate installation for 120 or 240-volt applications.


Model:

9815WH

Features

  • 1,500-watt heater at 120 or 240 volts creates heat to warm lobbies, entrance ways or vestibules
  • Built-in, adjustable thermostat for convenient temperature control
  • Energy-saving, built-in fan-delay switch allows element to warm up before fan starts to help prevent cold air delivery
  • Fan remains on as the element cools down to provide efficient use of the remaining warmth
  • On/off operation
  • UL listed
  • Specs
  • Downloads

print

Air Mover Type
Auto Shut-off Yes
cUL Listed No
Heater Type Fan-Forced Wall
Housing Finish
Housing Material
Number Of Heat Settings Variable (Infinite)
Project Pack No
Thermostat Yes
Timer
Type
Heating Element
UL Listed No
Coverage Area (sq ft) 100-150
BTU/hr at 120 Volts 5120
BTU/hr at 208 Volts 0
BTU/hr at 240 Volts 5120
Color Finish

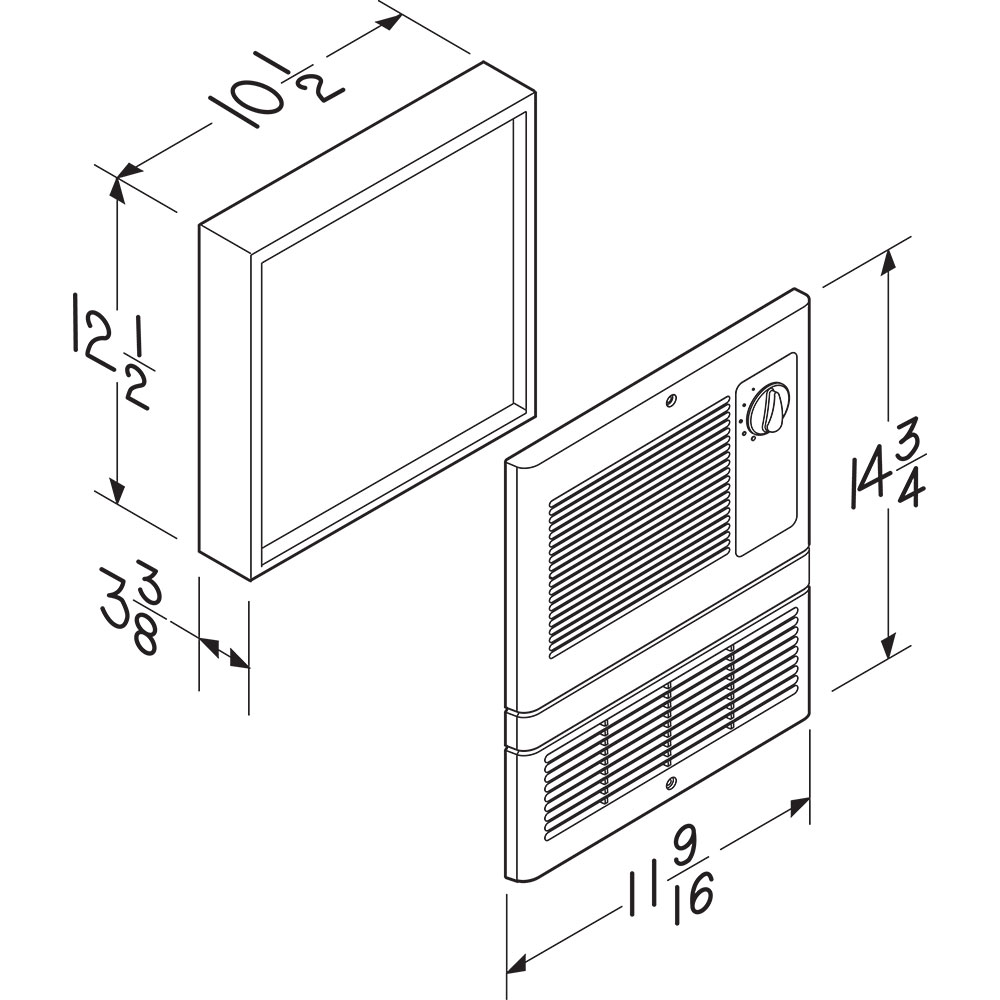

Grille Dimensions - Height
Grille Dimensions - Width 11.5625
Housing Dimensions - Height
Housing Dimensions - Width
Housing Length/Depth 3.375
Watts And Amps At 120 Volts 13
Watts And Amps At 208 Volts
Watts And Amps At 240 Volts 6.5
Watts at 120 VAC 1500
Watts at 208 VAC
Watts at 240 VAC 1500
Manufacturer Warranty 1 Year
