BROAN 9810 and 9815 Series
Broan® Wall Heater, High-Capacity, 1000W Heater, 120/240V
High capacity wall heaters for residential and light commercial use. When you need more power for high heat loss areas, Broan's large capacity wall heaters are an ideal solution for lobbies, entrance ways, vestibules or any area requiring high wattage heating.
Model:
9810WH
$165.00
retailer prices may vary
Features
- White, polymeric heat resistant grille has contemporary styling with radius edges, straight louvers, and subtle contours for a clean, attractive appearance
- Adjustable, front-mounted thermostat offers a simple way to control the level of heat
- Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds
- Quiet, thermally protected motor shuts off in event of overheating and transverse blower circulates heated air downward for optimal room warming. UL Listed for safety.
- Optional line-voltage wall thermostat (Model 87W sold separately) or timer (Models 59V or 59W 60-minute timer or Models 61V or 61W 15-minute timer) are available for a convenient way to control the heater
- Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of a primary heat source
- Factory wired at 1,000W, at 120V AC—easily converts to 1,000W at 240V AC for added versatility
Compatible Control
| Auto Shut-off | Yes |
|---|---|
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | Variable (Infinite) |
| Project Pack | No |
| Thermostat | Yes |
| UL Listed | Yes |
| Coverage Area (sq ft) | 100-150 |
| BTU/hr at 120 Volts | 3413 |
| BTU/hr at 208 Volts | 0 |
| BTU/hr at 240 Volts | 3413 |
| Color Finish |
|

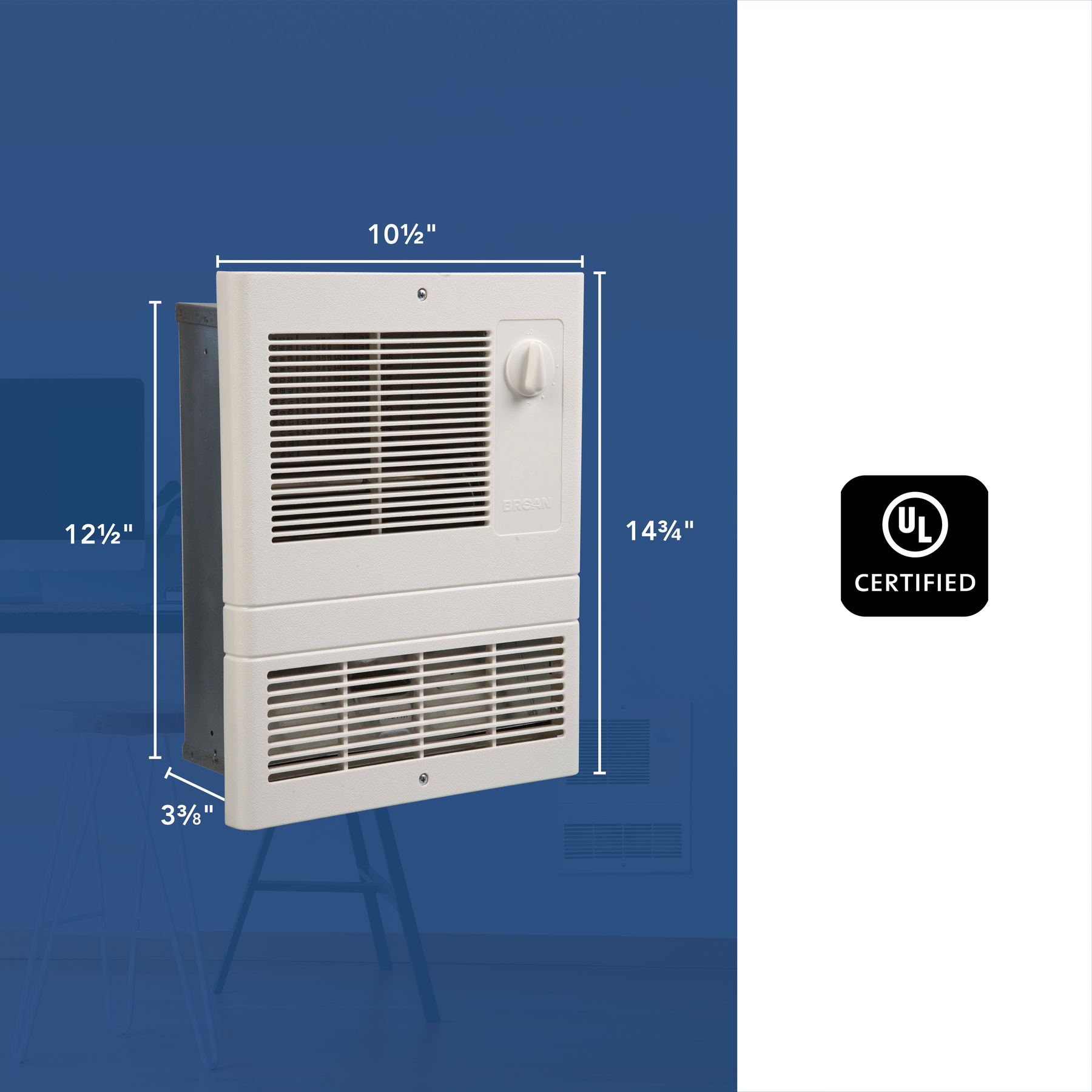

| Grille Dimensions - Width | 11.5625 |
| Housing Length/Depth | 3.375 |
| Watts And Amps At 120 Volts | 9 |
| Watts And Amps At 240 Volts | 4.5 |
| Watts at 120 VAC | 1000 |
| Watts at 240 VAC | 1050 |
| Manufacturer Warranty | 1 Year |
