Product Discontinued
Project Finish Kit
**DISCONTINUED** Broan® Project Pack w/ Built-In Thermostat, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC
Model:
174FT
Features
- Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.
- White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability
- Adjustable, front-mounted thermostat offers a simple way to control the level of heat
- Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds
- Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)
- Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.
- Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home's main heat source
- Factory wired at 1,500W, at 120V AC, it can be easily converted to 750W at 120v AC or 1,500W at 240V AC for added versatility
- Includes thermostat
- Specs
- Downloads
| Auto Shut-off | Yes |
|---|---|
| cUL Listed | No |
| Heater Type | Housing Project Pack |
| Number Of Heat Settings | Variable (Infinite) |
| Project Pack | No |
| Thermostat | Yes |
| UL Listed | No |
| Coverage Area (sq ft) | 100-150 |
| BTU/hr at 120 Volts | 5120 |
| BTU/hr at 208 Volts | 3840 |
| BTU/hr at 240 Volts | 5120 |
| Color Finish |
|

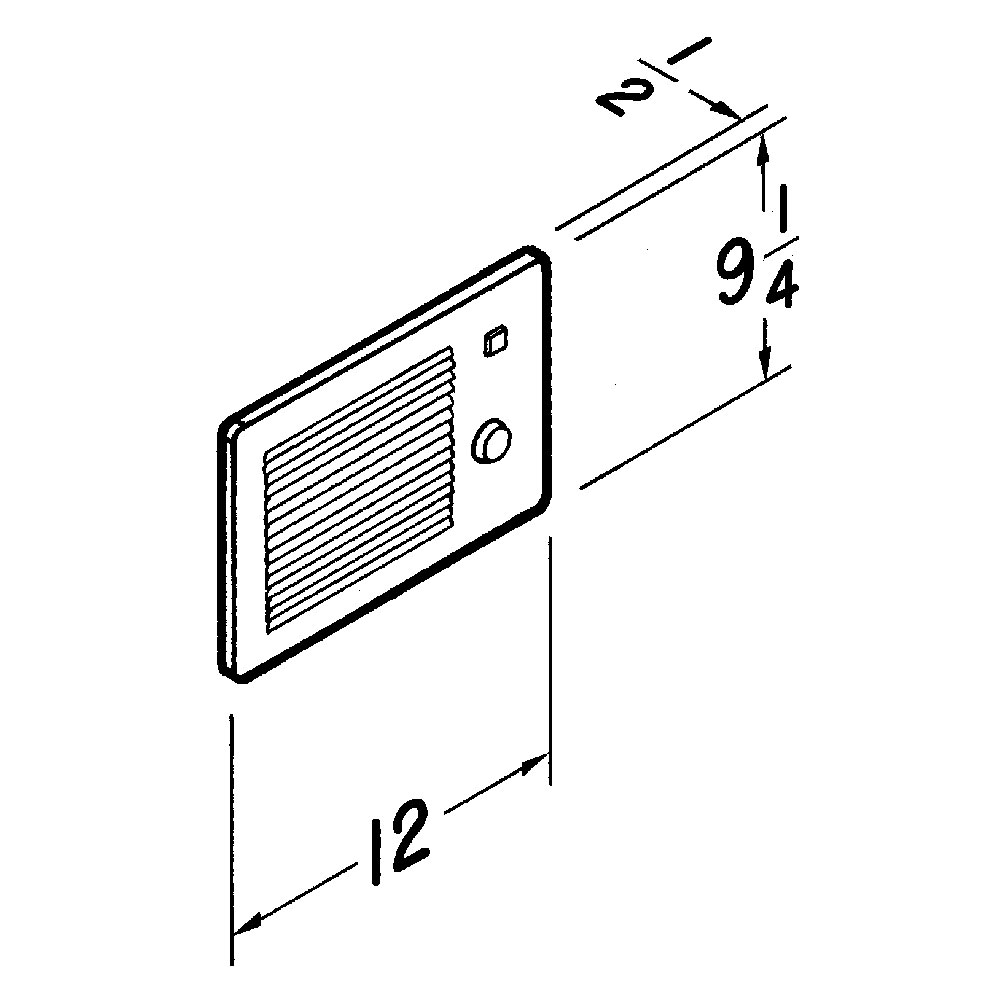

| Grille Dimensions - Width | 12 |
| Housing Length/Depth | 3.75 |
| Watts And Amps At 120 Volts | 12.5 |
| Watts And Amps At 208 Volts | 5.41 |
| Watts And Amps At 240 Volts | 6.25 |
| Watts at 120 VAC | 1500 |
| Watts at 208 VAC | 1125 |
| Watts at 240 VAC | 1500 |
| Manufacturer Warranty | 1 Year |
