Project Finish Kit

Broan® Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC

To reduce jobsite damage, Broan heaters can be ordered in project packs which feature housing packed separately from the finish kit. Install the housing and when drywall and painting is complete, add the heating element and grille.


Model:

174F

Features

  • Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.
  • White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability
  • Adjustable, front-mounted thermostat offers a simple way to control the level of heat
  • Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds
  • Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)
  • Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.
  • Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home's main heat source
  • Factory wired at 1,500W, at 120V AC, it can be easily converted to 750W at 120v AC or 1,500W at 240V AC for added versatility.
  • Can be operated using the Broan Integral Thermostat (Model 83) or timer (Models 59V, 59W, 61V or 61W) for a simple and convenient way to control the heater
  • Specs
  • Downloads

print

Air Mover Type
Auto Shut-off Yes
cUL Listed No
Heater Type Housing Project Pack
Housing Finish
Housing Material
Number Of Heat Settings On-Off
Project Pack No
Thermostat No
Timer
Type
Heating Element
UL Listed No
Coverage Area (sq ft) 100-150
BTU/hr at 120 Volts 5120
BTU/hr at 208 Volts 3840
BTU/hr at 240 Volts 5120
Color Finish
Grille Dimensions - Height
Grille Dimensions - Width 12

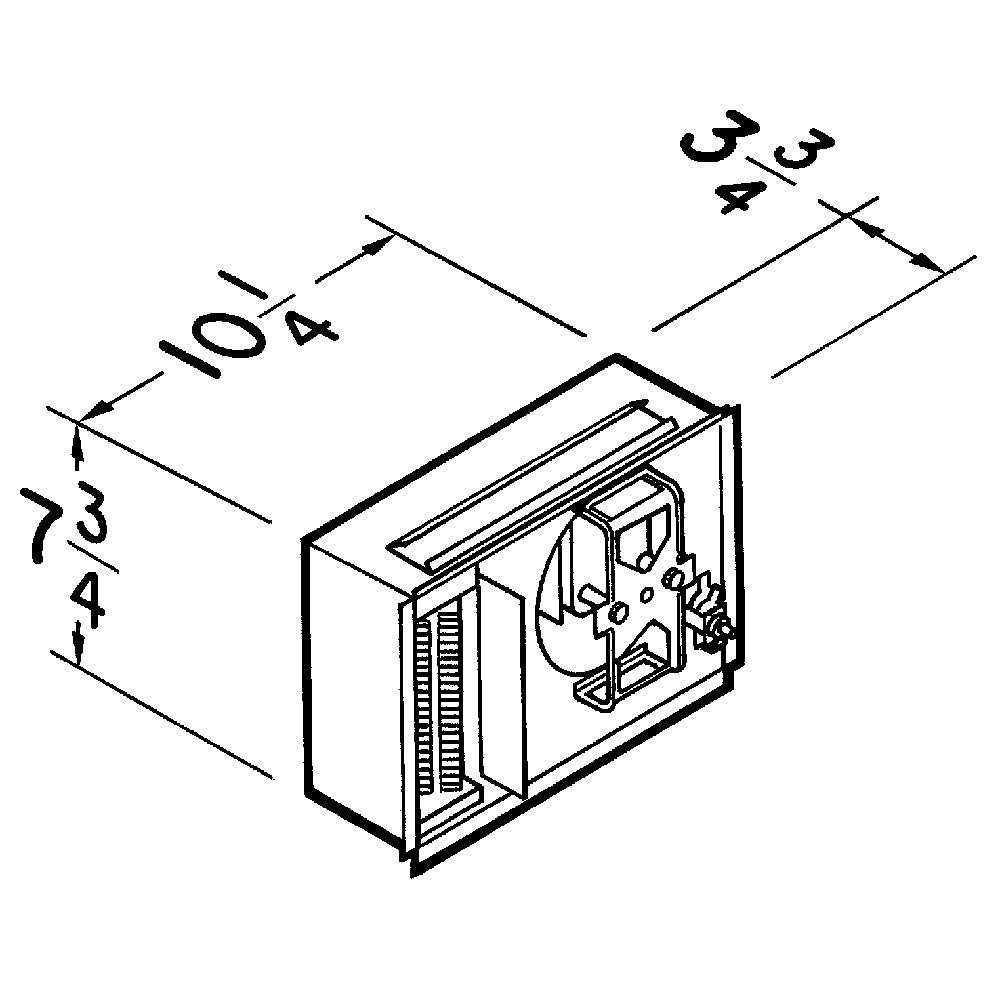

Housing Dimensions - Height
Housing Dimensions - Width
Housing Length/Depth 3.75
Watts And Amps At 120 Volts 12.5
Watts And Amps At 208 Volts 5.41
Watts And Amps At 240 Volts 6.25
Watts at 120 VAC 1500
Watts at 208 VAC 1125
Watts at 240 VAC 1500
Manufacturer Warranty 1 Year
