Product Discontinued

Project Finish Kit

**DISCONTINUED** Broan® Project Pack w/ Built-In Thermostat


Model:

170FT

Suggested Replacement: 170

Features

  • Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.
  • White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability
  • Adjustable, front-mounted thermostat offers a simple way to control the level of heat
  • Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds
  • Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)
  • Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.
  • Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home's main heat source
  • Factory wired at 1,000W, at 120V AC, it can be easily converted to 500W at 120v AC or 1,000W at 240V AC for added versatility
  • Includes thermostat
  • Specs
  • Downloads

print

Auto Shut-off Yes
cUL Listed No
Heater Type Housing Project Pack
Number Of Heat Settings Variable (Infinite)
Project Pack No
Thermostat Yes
UL Listed No
Coverage Area (sq ft) 65-100
BTU/hr at 120 Volts 3413
BTU/hr at 208 Volts 2560
BTU/hr at 240 Volts 3413
Color Finish
  • White

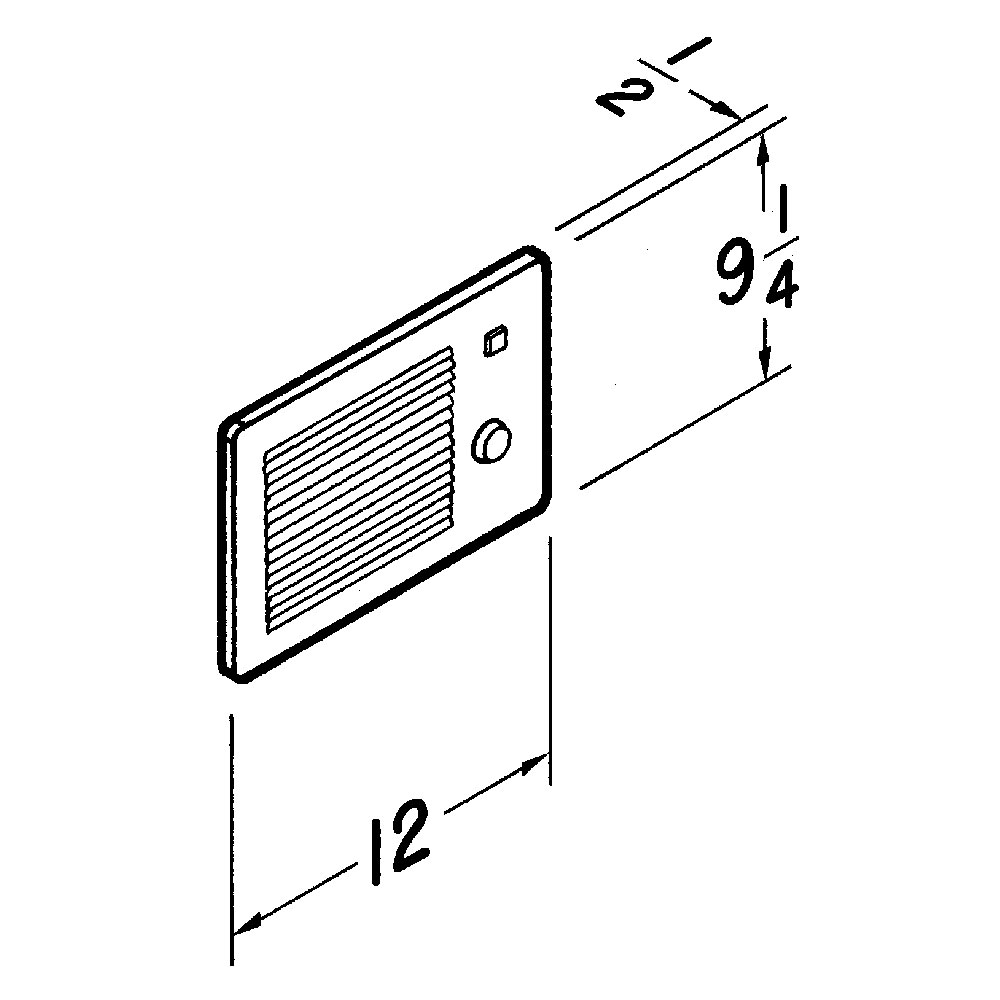

Grille Dimensions - Width 12
Housing Length/Depth 3.75
Watts And Amps At 120 Volts 12.5
Watts And Amps At 208 Volts 5.41
Watts And Amps At 240 Volts 6.25
Watts at 120 VAC 1500
Watts at 208 VAC 1125
Watts at 240 VAC 1500
Manufacturer Warranty 1 Year
