BROAN 120, 124 and 128 Series

Broan® Heater, 1000/2000W 240VAC, 750/1500W 208VAC

The 14-19/64 in. x 9-19/64 in. 2,000-Watt White Wall Heater features louvers that direct heated air downward for even distribution throughout an area. This wall heater can be operated from a convenient wall-mounted line-voltage thermostat by using the Broan model 86W. The thermal overload protection feature helps provide safe use.




  • 1,000-watt heater at 120 volts can be converted to 500 watts at 120 volts, 750 watts at 208 VAC or 1,000 watts at 240 VAC
  • Operates from a convenient wall-mounted line-voltage Broan model 86W thermostat (not included)
  • Manual reset
  • Thermal overload protection
  • Sturdy, 1-piece steel grille
  • Louvers direct air downward for even heat distribution
  • UL listed
  • Specs
  • Downloads


Air Mover Type
Auto Shut-off Yes
cUL Listed No
Heater Type Fan-Forced Wall
Housing Finish
Housing Material
Number Of Heat Settings On-Off
Project Pack No
Thermostat No
Heating Element
UL Listed No
Coverage Area (sq ft) 135-200
BTU/hr at 120 Volts 6826
BTU/hr at 208 Volts 5120
BTU/hr at 240 Volts 6827
Color Finish

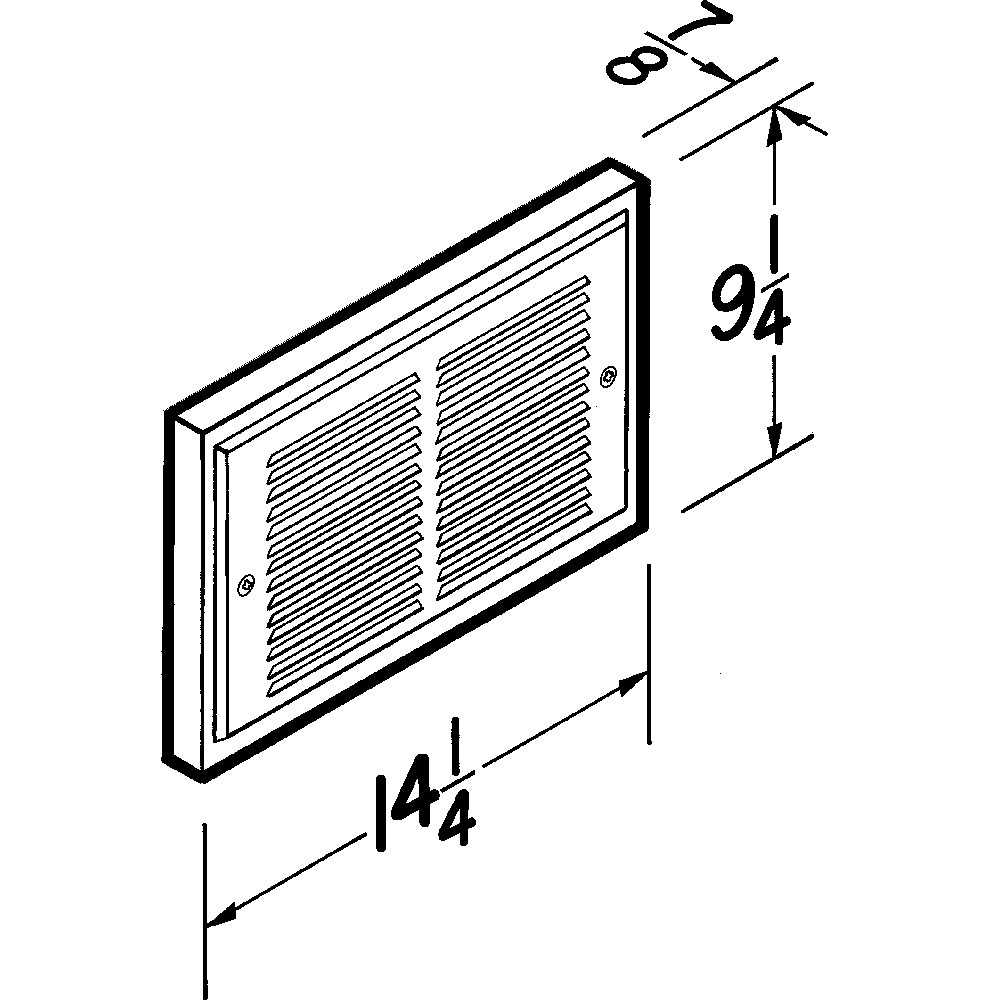

Grille Dimensions - Height
Grille Dimensions - Width 14.25

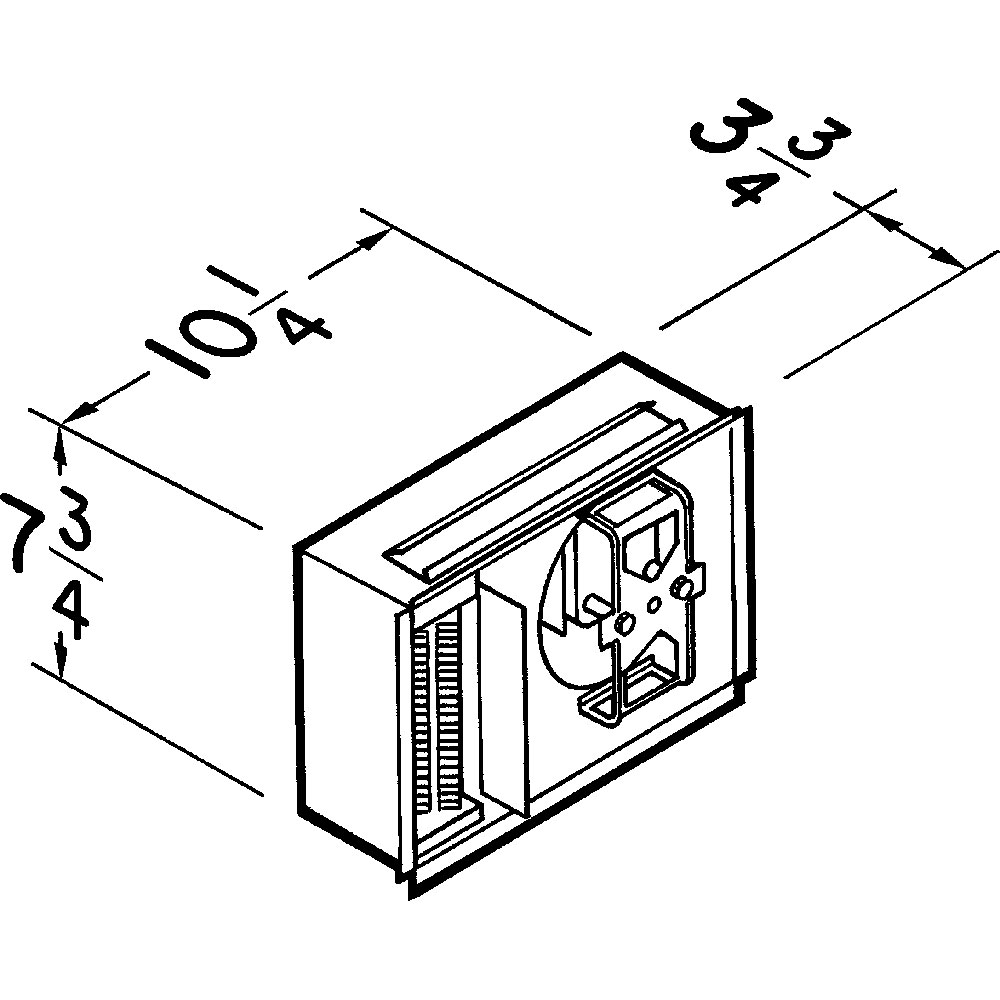

Housing Dimensions - Height
Housing Dimensions - Width
Housing Length/Depth 3.75
Watts And Amps At 120 Volts 8.3
Watts And Amps At 208 Volts 7.2
Watts And Amps At 240 Volts 6.33
Watts at 120 VAC 2000
Watts at 208 VAC 1500
Watts at 240 VAC 2000
Manufacturer Warranty 1 Year
