BROAN 120, 124 and 128 Series

Broan® Heater, 500/1000W 120VAC, 750W 208VAC, 1000W 240VAC

The 14-19/64 in. x 9-19/64 in. 1,000-Watt White Wall Heater features louvers that direct heated air downward for even distribution throughout an area. This wall heater can be operated from a convenient wall-mounted line-voltage thermostat by using the Broan model 86W. The thermal overload protection feature helps provide safe use.


Model:

120

Features

  • 2,000-watt heater at 240 volts can be converted to 1,000 watts at 240 volts
  • Operates from a convenient wall-mounted line-voltage Broan model 86W thermostat (not included)
  • Manual reset
  • Thermal overload protection
  • Sturdy, 1-piece steel grille
  • Louvers direct air downward for even heat distribution
  • UL listed
  • Specs
  • Downloads

print

Auto Shut-off Yes
cUL Listed No
Heater Type Fan-Forced Wall
Number Of Heat Settings On-Off
Project Pack No
Thermostat No
UL Listed No
Coverage Area (sq ft) 65-100
BTU/hr at 120 Volts 3413
BTU/hr at 208 Volts 2560
BTU/hr at 240 Volts 3413
Color Finish

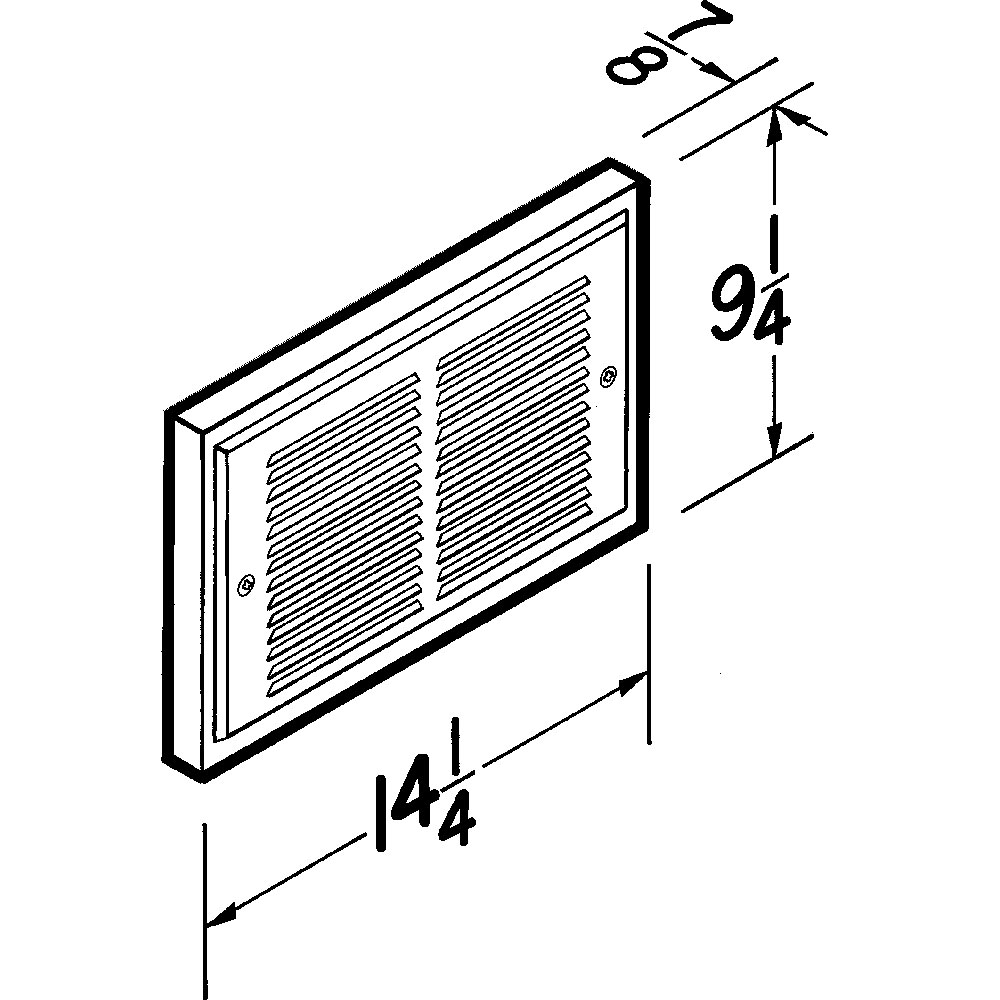

Grille Dimensions - Width 14.25

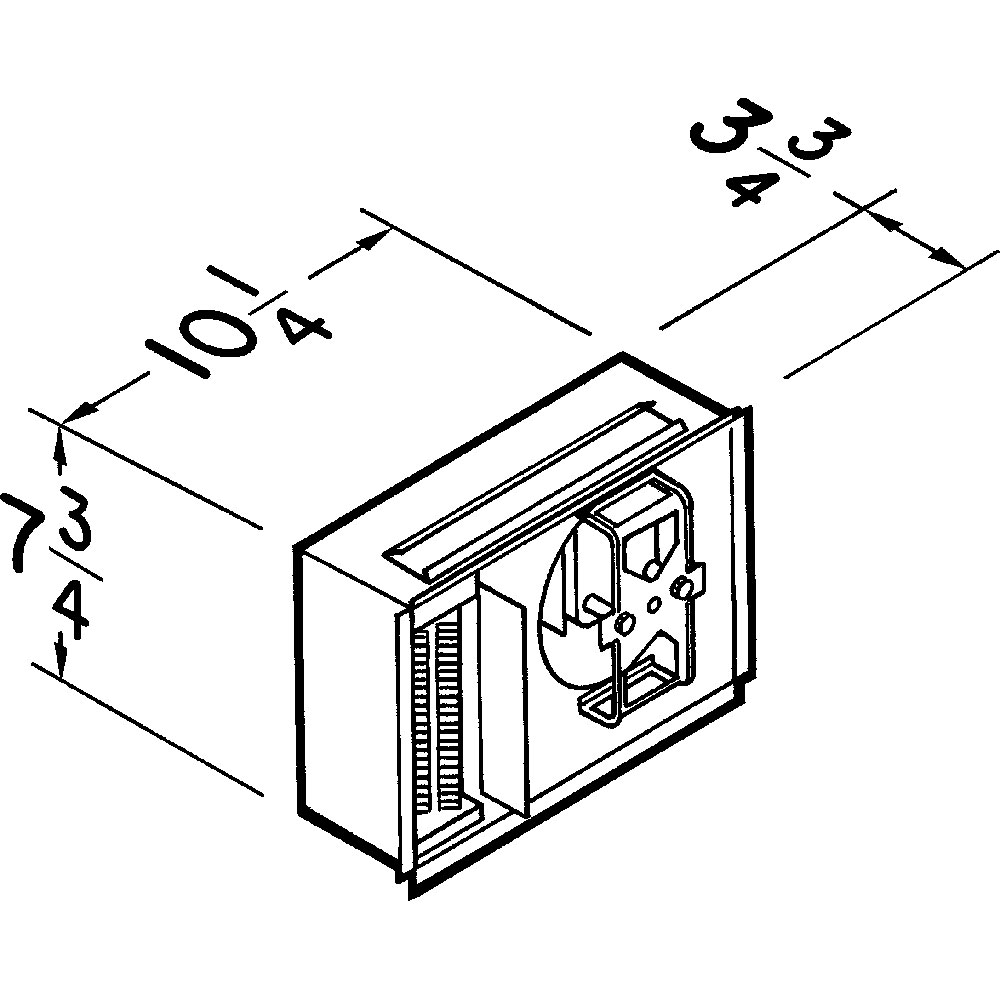

Housing Length/Depth 3.75
Watts And Amps At 120 Volts 8.33
Watts And Amps At 208 Volts 3.61
Watts And Amps At 240 Volts 4.16
Watts at 120 VAC 1000
Watts at 208 VAC 750
Watts at 240 VAC 1000
Manufacturer Warranty 1 Year
