BROAN 112 and 114 Series

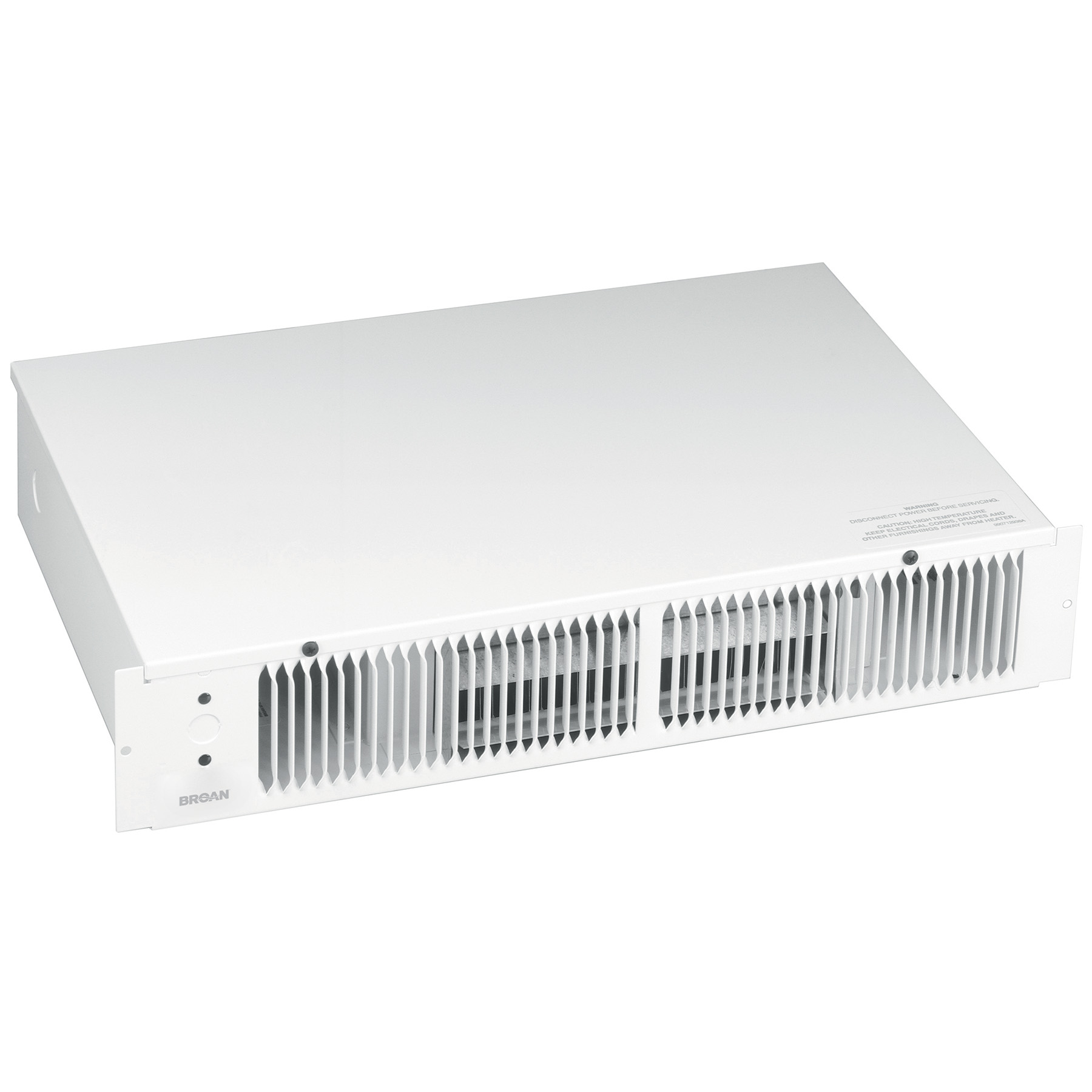

Broan® Kickspace Heater, 1500W 240VAC, 750/1500 W 120 VAC

The 1500-Watt White Electric Kick Space Heater features a steel-sheathed, plate-finned, heavy-duty heating element for long life and durability. Factory-wired for 1500 watts at 240 VAC, this kick space heater converts to 750-watt or 1500-watt at 120-volt for installation convenience. The appealing white finish complements many decor styles.


Model:

114

Features

  • 1500-watt heater at 240-volt can be converted to 750-watt or 1500-watt at 120-volt for installation flexibility
  • Designed for use with Broan model 90 thermostat (sold separately)
  • Steel-sheathed, plate-finned, heavy-duty heating element for long-lasting use
  • Attractive white grille matches many decor styles
  • Specs
  • Downloads

print

Air Mover Type
Auto Shut-off No
cUL Listed No
Heater Type Kickspace
Housing Finish
Housing Material
Number Of Heat Settings On-Off
Project Pack No
Thermostat No
Timer
Type
Heating Element
UL Listed No
Coverage Area (sq ft) 100-150
BTU/hr at 120 Volts 5120
BTU/hr at 208 Volts 3840
BTU/hr at 240 Volts 5120
Color Finish

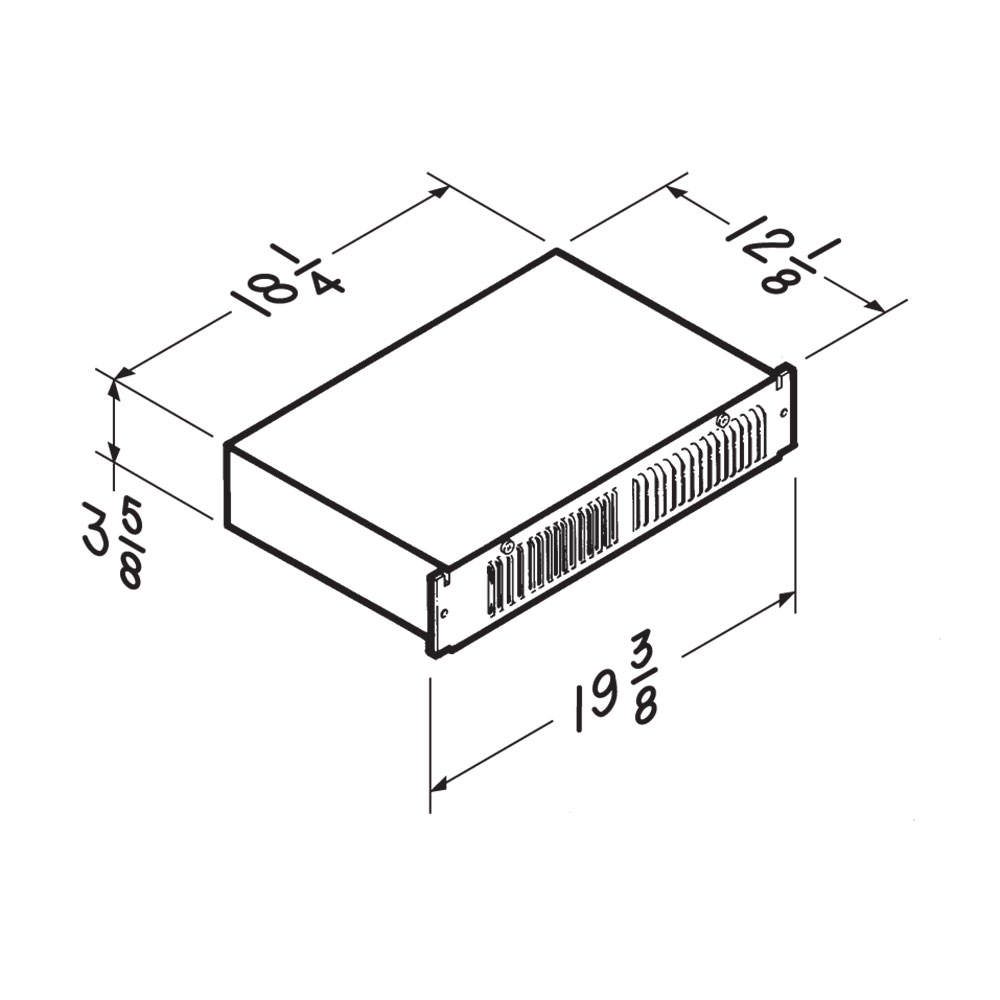

Grille Dimensions - Height
Grille Dimensions - Width 19.25
Housing Dimensions - Height
Housing Dimensions - Width
Housing Length/Depth 12.125
Watts And Amps At 120 Volts 12.5
Watts And Amps At 208 Volts 5.41
Watts And Amps At 240 Volts 6.3
Watts at 120 VAC 1500
Watts at 208 VAC 1125
Watts at 240 VAC 1500
Manufacturer Warranty 1 Year
