Broan® Bathroom Exhaust Fan Upgrade Kit, 60 CFM

The Broan® bath fan upgrade kits let you convert your old bath fan to a brand new unit in just 10 minutes. Improve performance, reduce the sound level and upgrade the appearance of your economy fan in minutes.


Model:

QK60S

  • Upgrading bath fan performance is easy with our all-in-one kit. NO rewiring. NO new duct work. NO hassles. ALL in just 10 minutes!
  • New motor (60 CFM and 2.5 sones on model QK60 and 60 CFM and 3.0 sones on model  690) reduces sound up to 68%, improves air movement up to 45% and helps control humidity that causes mold and mildew.
  • Air delivery shall be no less than 60 CFM and sound level no greater than 2.5 Sones
  • All air and sound ratings are HVI Certified; Unit is U.L. Listed
  • White polymeric grille blends well with any decor
  • Torsion spring grille mounting, no tools required
  • Broan model QK60 QuicKit Bath Fan Upgrade Kit replaces only the models listed below if the fan housing measures 7-1/2" x 7-1/4":
  • Broan 670, 671, 688, 689
    • Housing dimensions: 7-1/2" x 7-1/4" only
  • Nautilus N671, N688
    • Housing dimensions: 7-1/2" x 7-1/4" only (8" x 8-1/4" are not compatible)
  • NuTone 695, 696N
    • Housing dimensions: 7-1/2" x 7-1/4" only

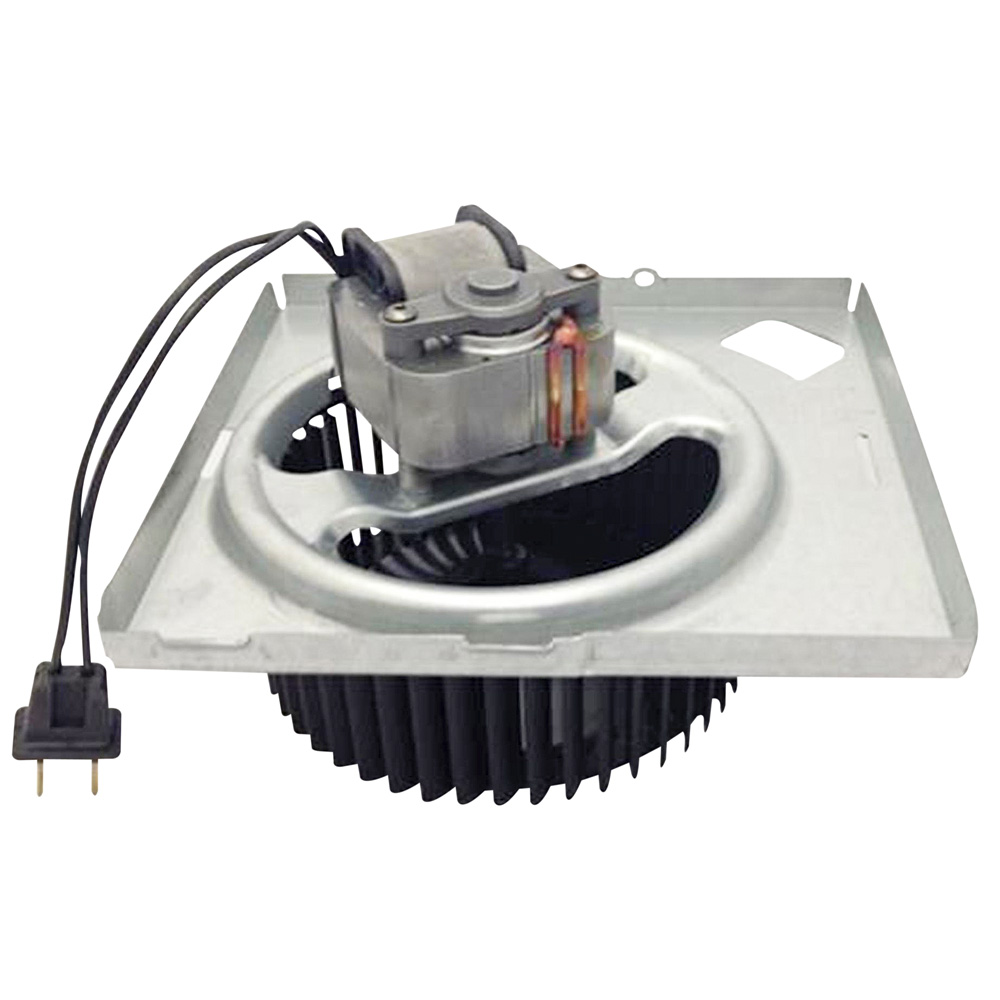

  • Kit contains motor plate to, a plug-in fan motor and blower wheel and new grille providing all the parts you need to upgrade, without the hassle of replacing the whole housing. No ducting or electrical work is required
  • QK60 (4-pack)
  • QK60S (single-pack)
  • Broan model 690 Upgrade Kit replaces the following models:
  • Broan 670, 671, 688, 689
    • Housing dimensions: 7½" x 7¼" (Not compatible with 8" x 8¼")
  • Nautilus N671, N688
    • Housing dimensions: 7½" x 7¼" (Not compatible with 8" x 8¼")
  • NuTone 693, 695, 696N
    • Housing dimensions: 7½" x 7¼" or 8" x 7¼"
  • Kit contains a choice of motor plates to suit multiple models, a plug-in fan motor and blower wheel, wrench and new grille providing all the parts you need to upgrade, without the hassle of replacing the whole housing. No ducting or electrical work is required
The Easiest DIY. Ever.

The Easiest DIY. Ever.

Simple steps to replace the fan motor and grille / cover reducing noise and increasing the ventilation power.

Broan Standard Bath Fan

Broan Standard Bath Fan


Label Placement
Remove the grille by pulling down 2 inches. Reach behind the grille and squeeze the mounting springs to remove the grille. The model label is located in the corner closest to the outlet. Some fans may have the model stamped into the motor plate instead of a printed sticker label.

  • Downloads
  • Videos

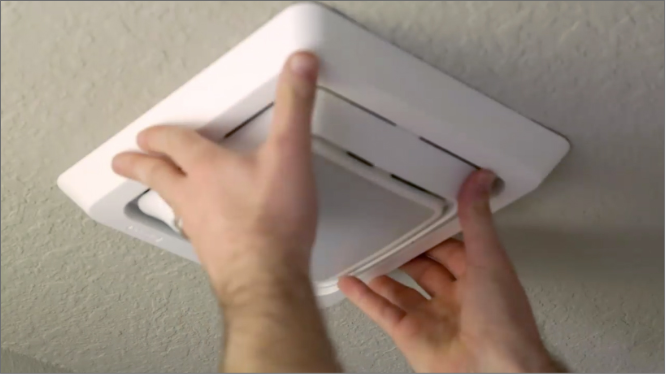

Broan QuicKit™ Installation Video QK60
Broan QuicKit™ Measuring Video QK60
Freshen Up With a New Grille
