Broan-NuTone® Bath Exhaust Fan, 50 CFM, ENERGY STAR
The Broan-NuTone® Energy Star bathroom exhaust fan is a versatile, compact, and economical ventilation solution. Designed for easy installation, this fan can be installed in just 10 minutes without the need for attic access or drywall cutting. Featuring a louvered grille, galvanized steel housing, and double-strength mounting flanges, it delivers powerful ventilation performance at 2.0 sones, helping to prevent mold and mildew. Additionally, the fan includes a removable motor assembly and a plug-in, permanently lubricated motor for easy service and cleaning.
Model:
688ES
Features
ENERGY STAR certified

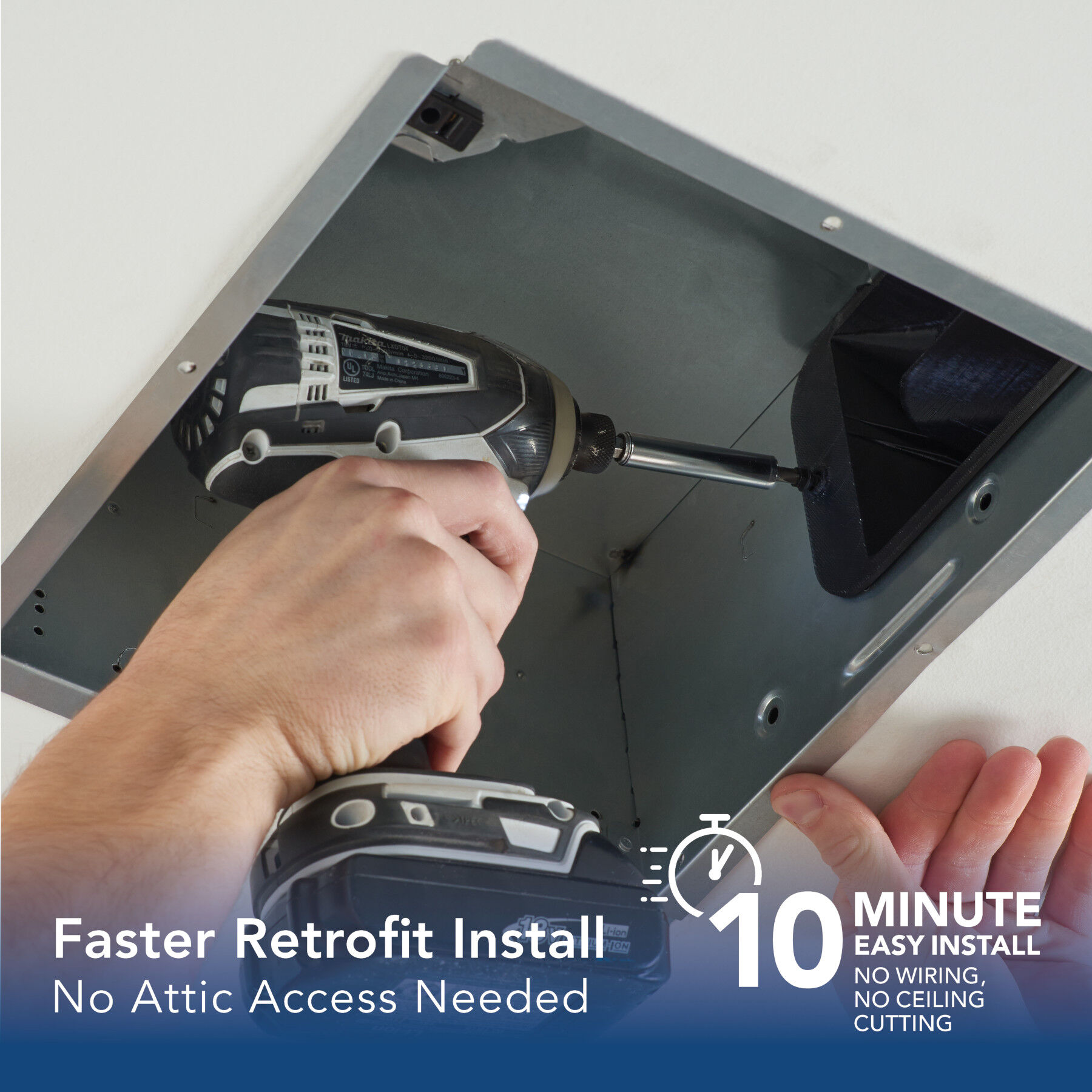

- 10 Min Install: Easy installation without the need for attic access or additional drywall cutting.
- Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft.
- ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans.
- No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation.
- Brighter white louvered grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover – make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
| CFM | 50 |
|---|---|
| Color Finish |
|
| Duct Size | 3 |
| ENERGY STAR® certified | Yes |
| Grille Length | 9 |
| Grille Width | 8.75 |
| Sound Level (Sones) | 2 |
| UL Listed | No |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| High Efficiency Luminaire | No |
