Bath Fan Upgrade Kit

Broan® 60 CFM Bathroom Fan Upgrade Kit, 3.0 Sones

The Broan® bath fan upgrade kit allows you to convert your old bath fan to a new one without the need to purchase a completely new fan. This upgrade kit will improve the performance, reduce the sound level and upgrade the appearance of your economy fan in minutes.




  • 60 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room and bathroom
  • 3.0 Sones for Quiet performance, enough sound to know your fan is on
  • Upgrading bath fan performance is easy with our all-in-one kit. NO rewiring. NO new duct work. NO hassles. ALL in just 10 minutes!

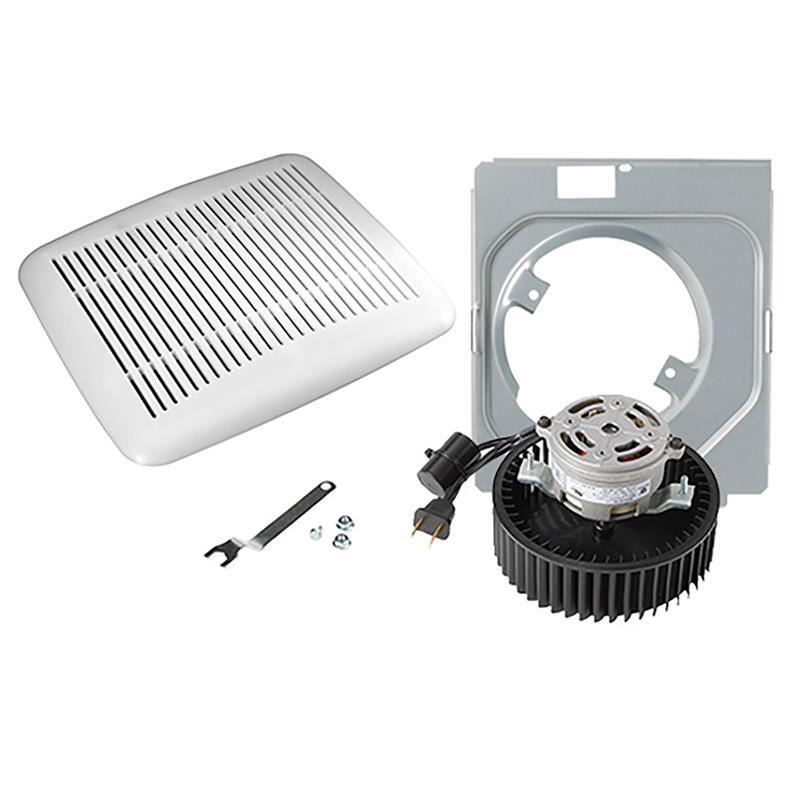

  • No special tools are required. The kit has everything you need including new motor assembly, a grille and complete step-by-step instructions.
  • Replaces the following NuTone® models 695C, 695CB, 696NC, 696NCB, 690AC
  • Replaces the Following Broan® models EC50, ECF50, EC70, ECF70, ECH600
  • Brighter white grilles blend in to match most common ceiling paint


CFM 60
Color Finish
  • White
Duct Size 3
ENERGY STAR® certified No
Grille Length 9.375
Grille Width 10.75
Housing Dimensions 8-1/16” x 7-3/8” x 3-7/8”
Sound Level (Sones) 3
Sound Level (Sones) 3
UL Listed No
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Recommended Room Size (Sq Ft) 55
Rated Amps 1.2
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty no
High Efficiency Luminaire No
Minimum Recommended Flow 0
