Selectable CCT CleanCover Series
80 CFM Bathroom Exhaust Fan with CCT LED Light CleanCover™ Grille, ENERGY STAR

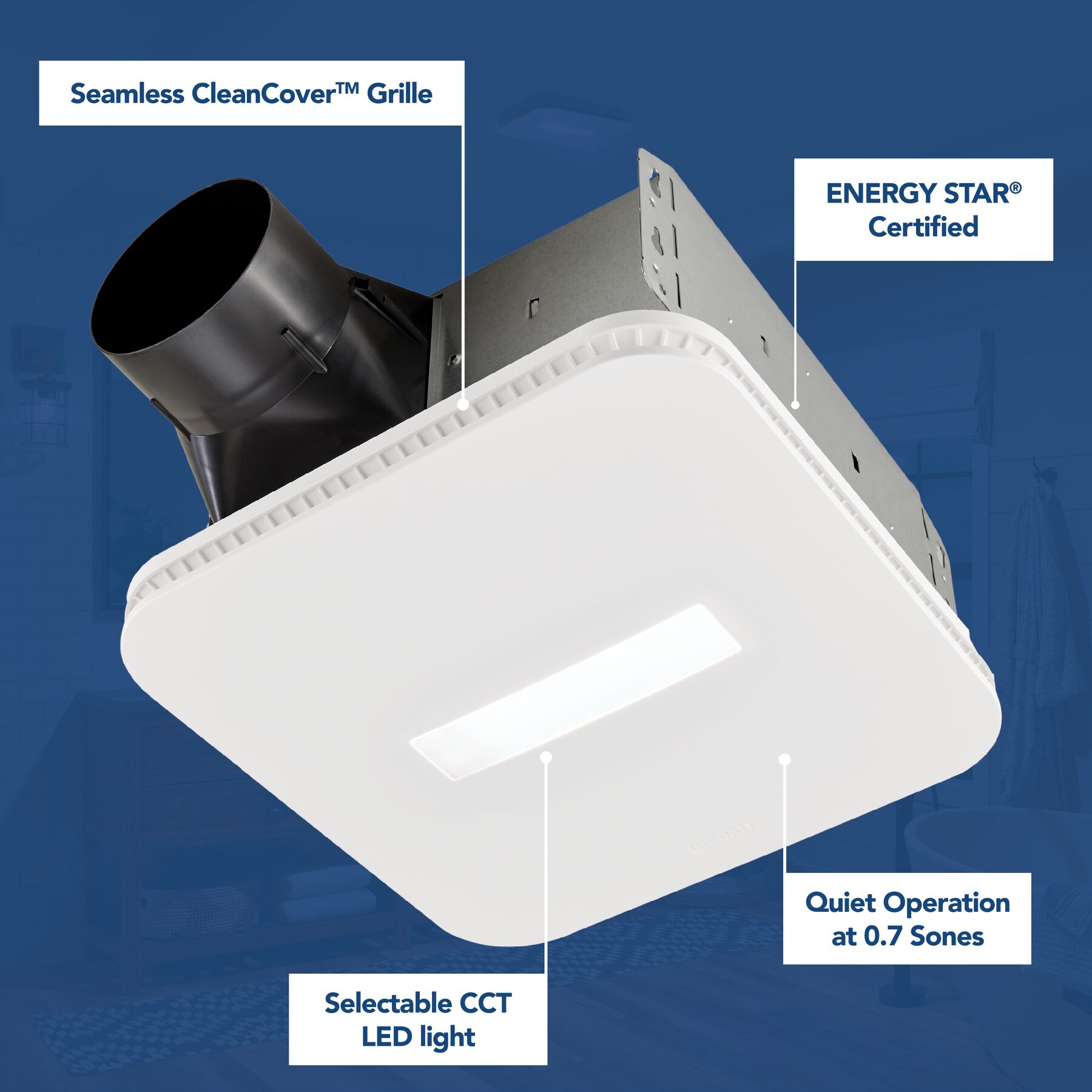

The Broan® Roomside Series Ventilation fan with CleanCover™ grille and Selectable CCT LED light offers adjustable color temperature that allows you to control the mood of your space. From a warm 3000K LED to a crisp 5000K LED you can match your vanity lights or create the look you desire; adjustability is right at your fingertips. The CleanCover™ grille clears the air with a low profile, streamline design. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge.
Model:
AER80CCTK
Features

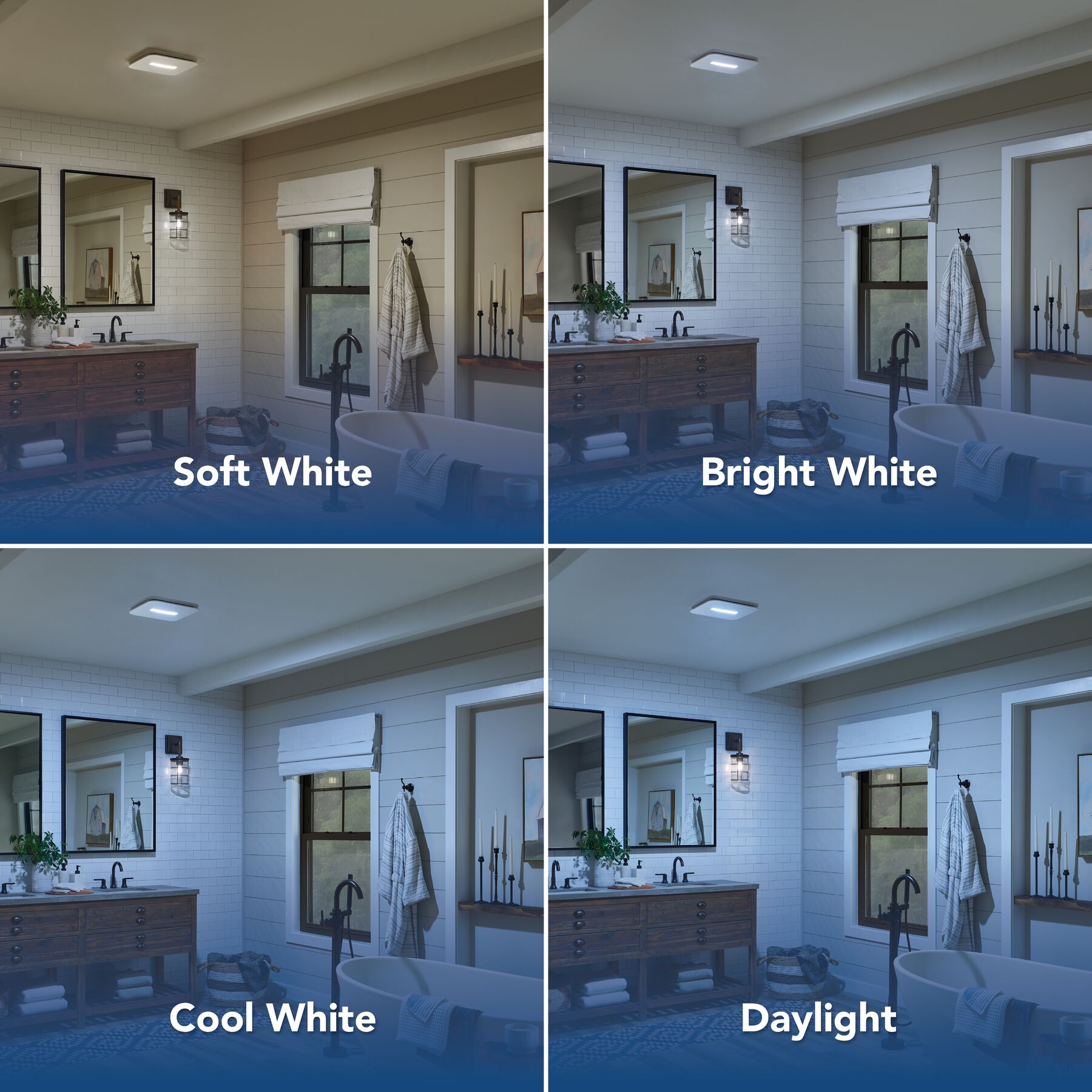

- Customize your space with 4 selectable light settings with the flip of a switch, automatically saving your last setting
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for whisper quiet operation
- Broan® Roomside Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

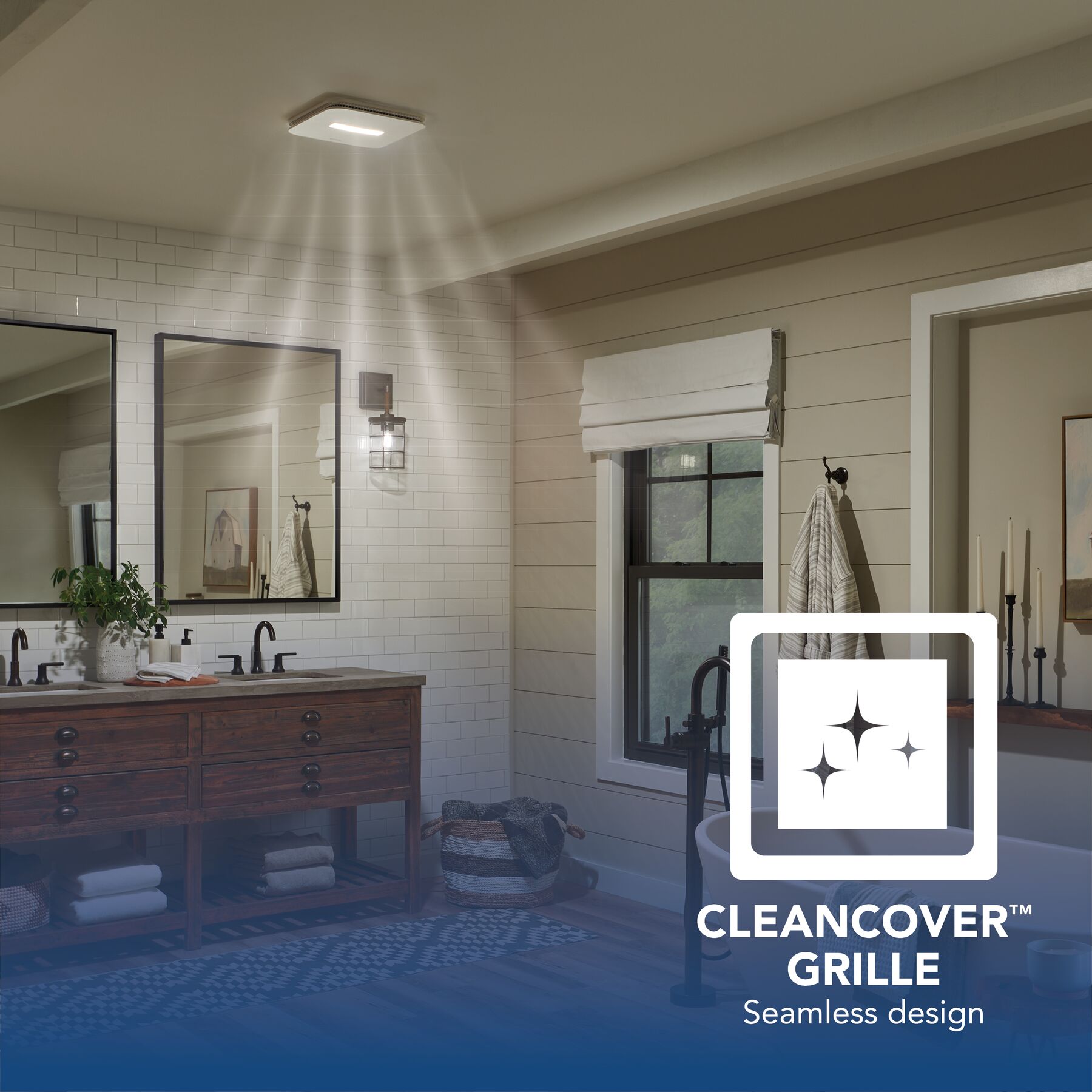

- CleanCover grille stays cleaner longer with fewer vent slots to collect dust
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- ENERGY STAR® certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
Suggested Installation Accessories
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 12.25 |
| Grille Width | 12.25 |

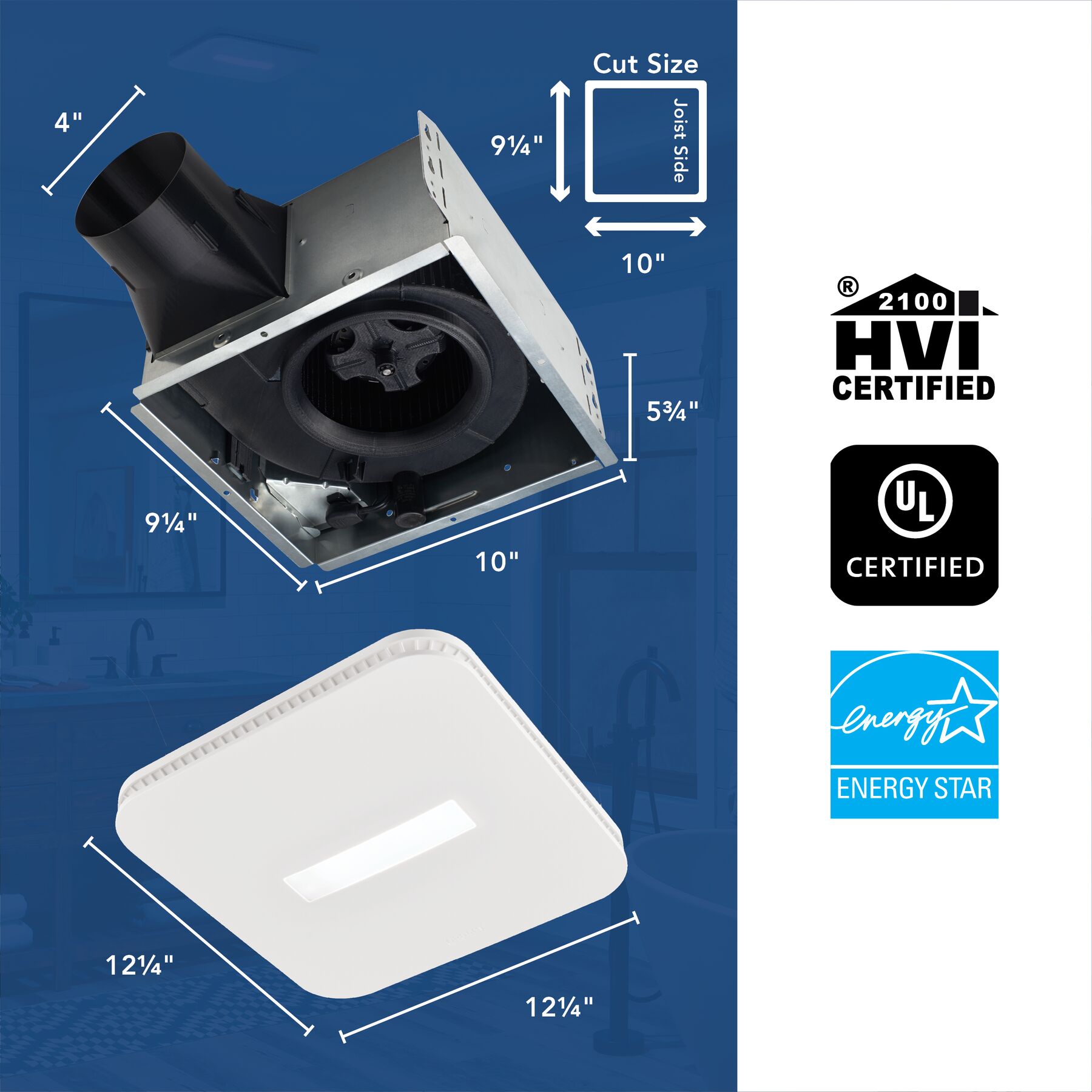

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.45 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | 11 Watt LED module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
