Flex Series
Broan Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Energy Star®
Enjoy easy exhaust bath fan installation with the Flex Series 80 CFM Ceiling Exhaust Bath Fan, ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for a fast and simple installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. Operating capabilities allow this fan to run at a powerful 80 CFM and a quiet .7 sones for a smooth run.
Model:
AE80B
Features

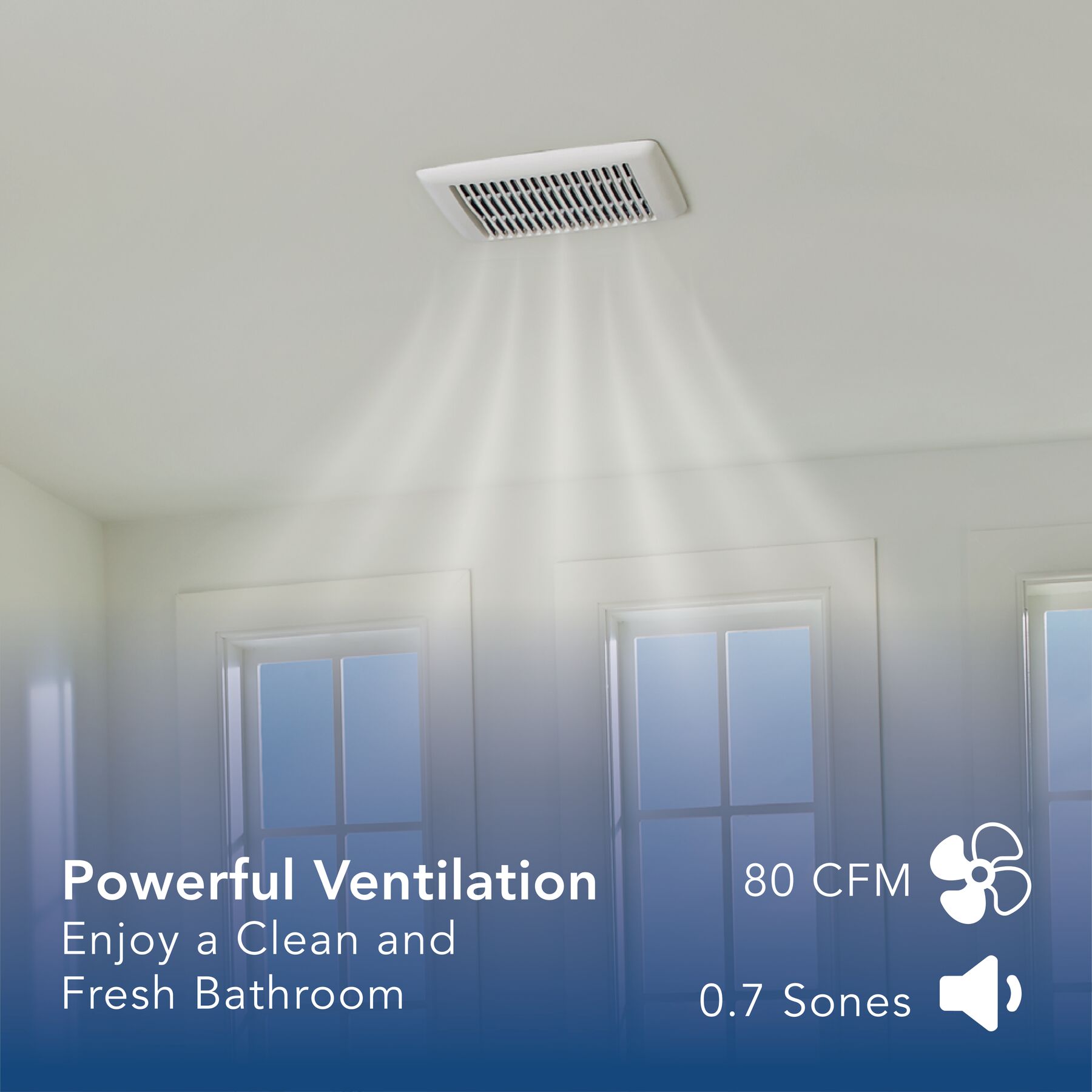

- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Quiet performance, enough sound to know your fan is on.

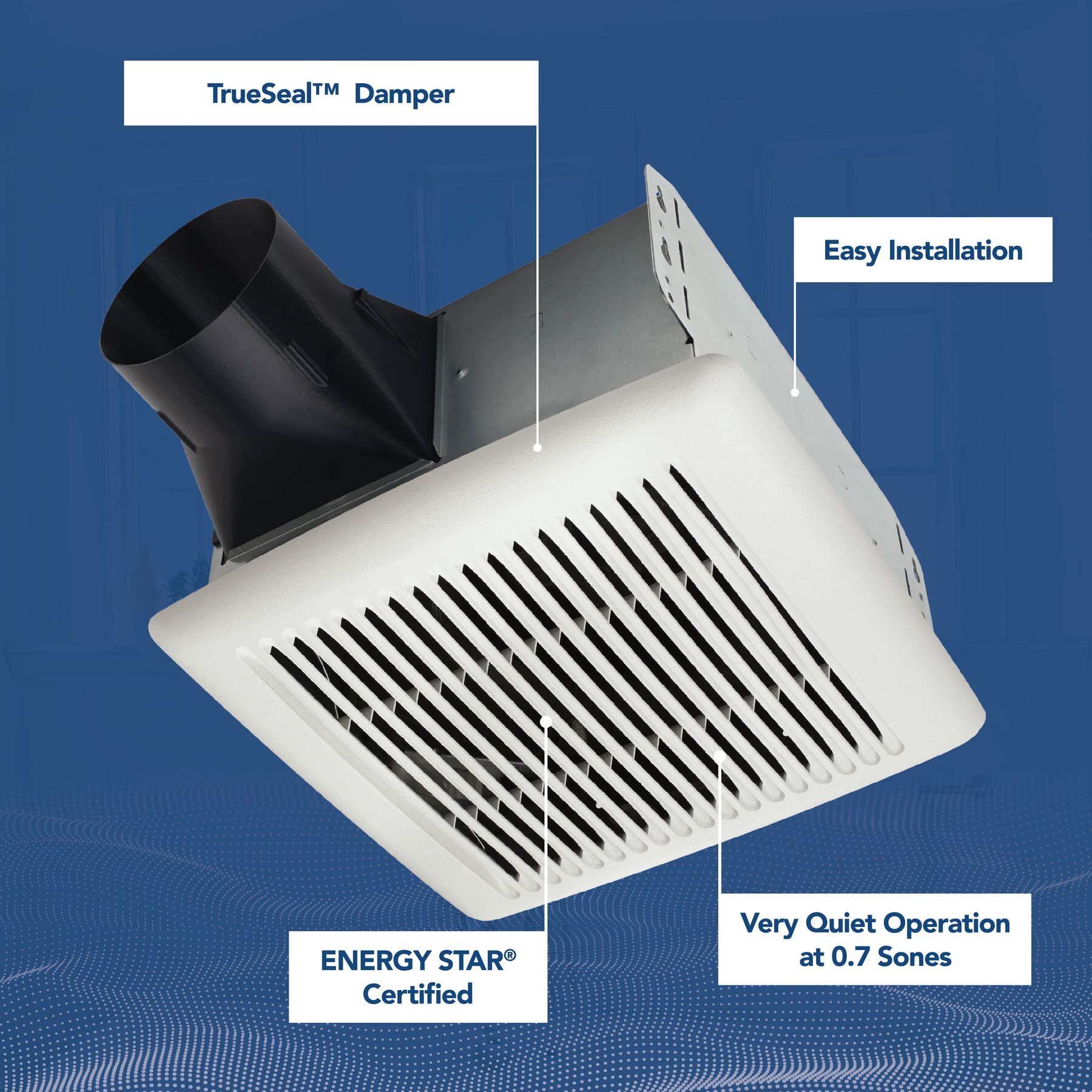

- TrueSeal™ Damper technology reduces air leakage up to 50%

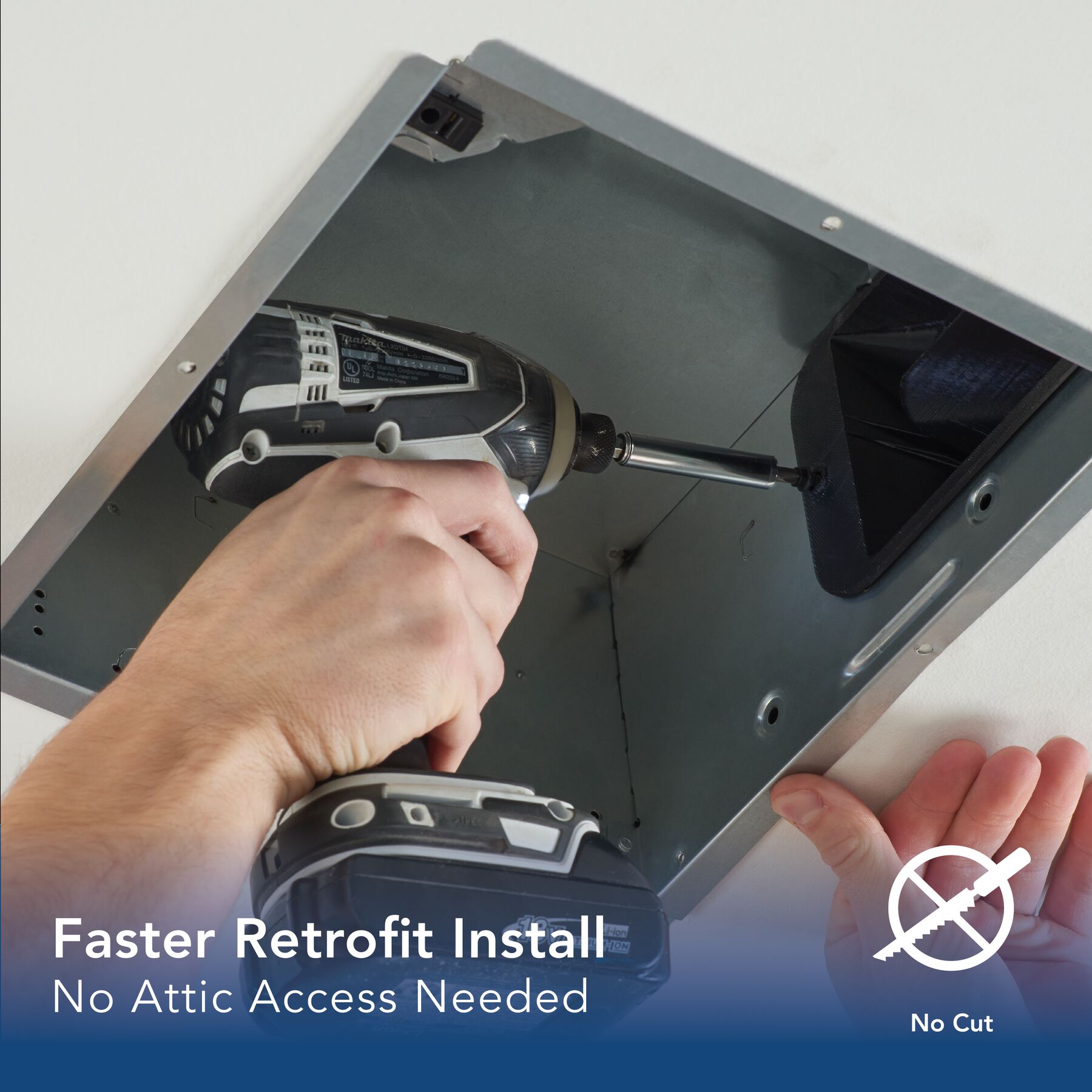

- EzDuct™ connector can be installed from the room side, with no attic access required
- ENERGY STAR® certified for energy efficiency
- UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Upgrade This Fan with These Grille/Cover Options
Suggested Installation Accessories
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12 |

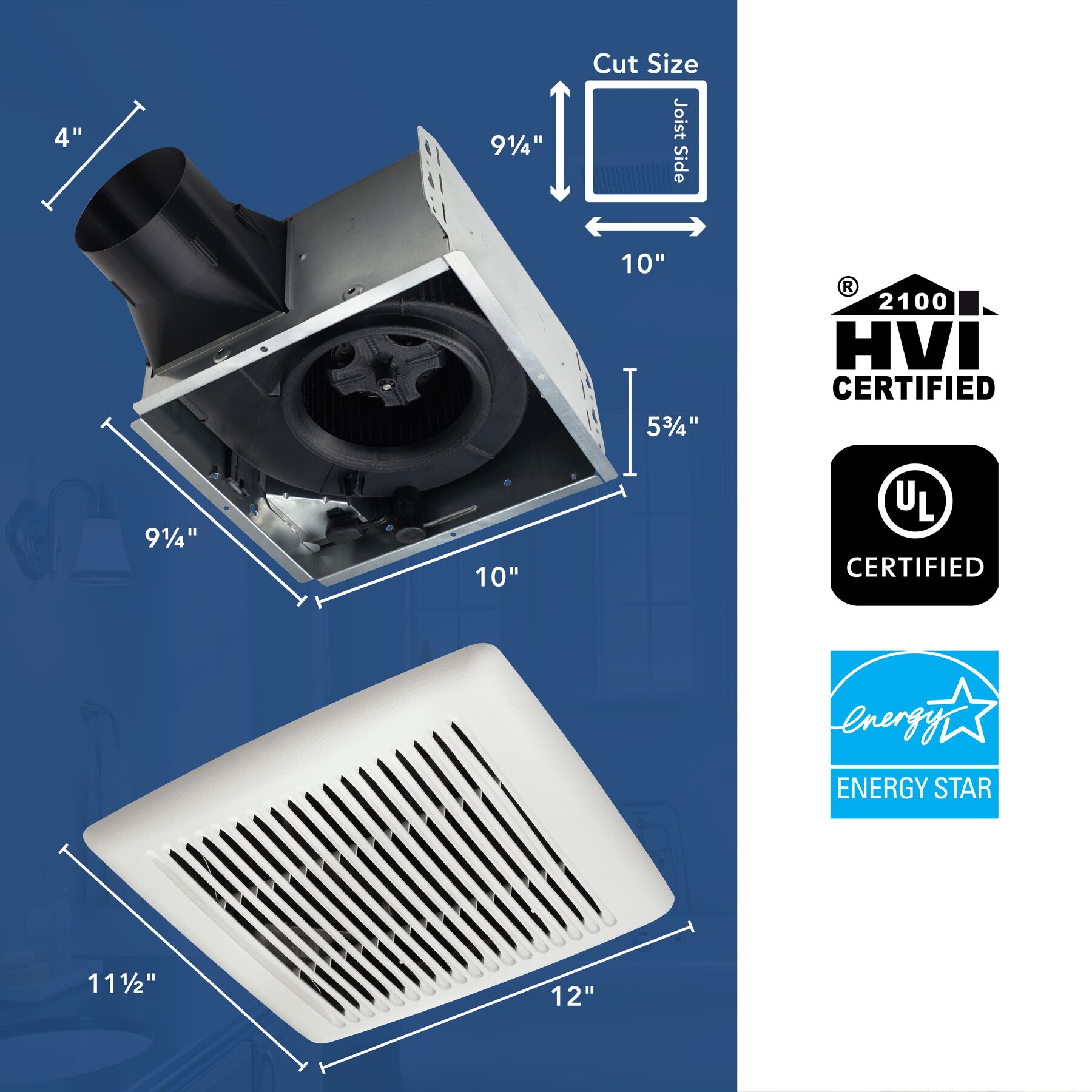

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| Sound Level (Sones) | 0.7 |
| UL Listed | No |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
